    Automatic Horizontal Coil Inserting Machine With Wedge Feeding Mode , Controlled by PLC

    Ask Lasest Price
    Brand Name : Nide
    Certification : None
    Model Number : QW1-250-300
    Price : Negotiable
    Delivery Time : 45 working days
    Payment Terms : T/T, L/C
    Supply Ability : 500 sets per year
    • Product Details
    • Company Profile

    Automatic Horizontal Coil Inserting Machine With Wedge Feeding Mode , Controlled by PLC

    Automatic Horizontal Coil Inserting Machine With Wedge Feeding Mode


    Quick Detail:

    1. This stator coil inserting machine can wind coil and insert wedge automatically.
    2. This stator coil inserting machine is controlled by PLC.
    3. This stator coil inserting machine is designed with a horizontal frame.
    4. easy operation and convenient tooling change.
    5. Wedge fedding mode can be set according to different motor.

    Description:

    Wedge fedding mode can be set according to different motor.Horizontal Winding Inserting Machine is equipped with human-machine control interface, Horizontal Winding Inserting Machine has the function of status display, malfunction alarm, various parameters setting etc. It has the characteristic of widely application, high automation, easy operation and convenient tooling change.

    It is used for winding and wedge automatically inserting. This machine adopts AC servo motor driving system, AC frequency conversion speed regualtion system, pneumatic system. It can achieve wedge length setting, feeding, cutting, forming and inserting into stator together with coil automatically. Coil inserting speed can be set at different section.


    Competitive advantages:

    Easy operation and convenient tooling change. It can achieve wedge length setting, feeding, cutting, forming and inserting into stator together with coil automatically.


    Application:

    The stator wire coil inserting machine is suitable for stators met the below specification.



    Specification:

    Stator I.D

    110~210mm

    Stator O.D

    175~300mm

    Stator stack length

    ≤250mm

    Slot number range

    16~48 slots

    Appropriate wire

    0.2~1.2mm

    Input

    380V/50Hz

    Power source

    380/50/60Hz4Kw

    Dimension

    1000*2000*2000mm

    Weight

    ≈ 1850kg


    Machine main function and characteristic:

    1.With horizontal frame design, controlled by industrial programmable PLC. It is used for winding and wedge automatically inserting.

    2.It adopts AC servo motor driving system, AC frequency conversion speed regulation system, pneumatic system.

    3.It can achieve wedge length setting, feeding, cutting, forming and inserting into stator together with coil automatically. Coil inserting speed can be set at different section. Wedge feeding mode can be set according to different motor.

    4.Euipped with human-machine control interface, it has the function of status display, malfunction alarm, various parameters setting etc.

    5.It has the characteristic of widely application, high automation, easy operation and convenient tooling change.

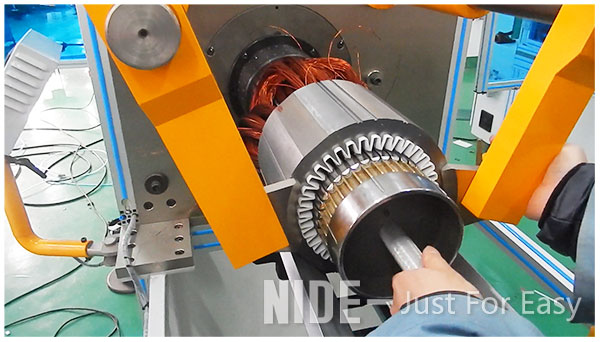

    Automatic Horizontal Coil Inserting Machine With Wedge Feeding Mode , Controlled by PLC-1

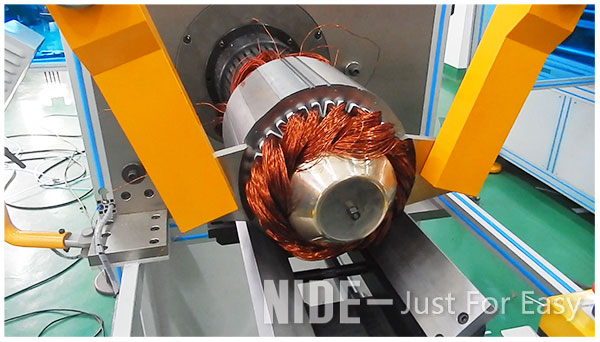

    Automatic Horizontal Coil Inserting Machine With Wedge Feeding Mode , Controlled by PLC-2

    Automatic Horizontal Coil Inserting Machine With Wedge Feeding Mode , Controlled by PLC-3

    Automatic Horizontal Coil Inserting Machine With Wedge Feeding Mode , Controlled by PLC-4
