    Induction motor stator wedge forming and cutting machine Double heads

    Ask Lasest Price
    Brand Name : Nide
    Certification : None
    Model Number : CG1-100D
    Price : Negotiable
    Delivery Time : 35 working days
    Payment Terms : T/T, L/C
    Supply Ability : 800 sets per year
    • Product Details
    • Company Profile

    Induction motor stator wedge forming and cutting machine Double heads


    Induction motor stator wedge forming and cutting machine Double heads


    Quick Detail:


    1. Model No.: CG1-100
    2. The wedge forming and cutting machine is used for wedge forming and cutting.
    3. it is equipped with a double row mould for paper cutting,

    The wedge forming and cutting machine can prepare wedge for the coil inserting process. Machine will automatically form and cut the wedge as per pre-set.


    (1) Technical parameter:

    Paper feeding length:10~200mm

    Paper cutting thickness:0.2-0.5mm

    Paper cutting speed:120pcs/min

    Power supply: 220V/ 50/60Hz

    Weight:150Kg

    Dimension:450*650*1100mm


    (2) Application:

    This wedge forming and cutting machine is used for wedge forming and cutting, especially for induction motor stator.


    (3) Machine function and characteristic:

    This wedge forming and cutting machine is equipped with a double row mould for paper cutting, steeping motor for controlling paper feeding action, human machine interface for setting feeding length and a heating device which is used before forming. Cutting speed and heating temperature are adjstable.

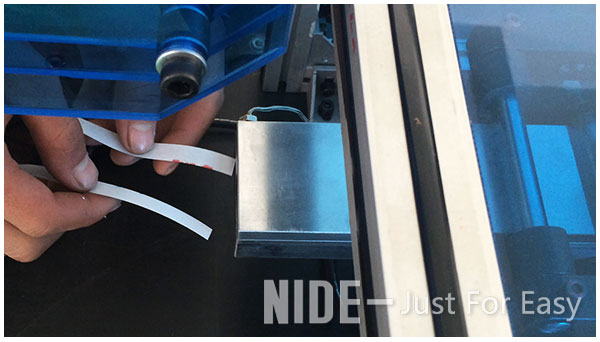

    Wedge forming and cutting machine

    Double-heads-stator-wedge-forming-and-cutting-machine-for-motor-insulation-manufacturing-91

    Double-heads-stator-wedge-forming-and-cutting-machine-for-motor-insulation-manufacturing-92

    Besides paper inserting machine, we also supply different types of electrical insulation materials for stator or armatures, such as insulation paper and insulation wedge with different class degree. DMD Class B/F, DM Class B/F, Polyester film Class E, Red Vulcanized Fiber Class A, NH& NHN, etc
    electrical insulation meterial motor winding insulation paper
