    stator Wedge inserting machine for all kinds of induction motor stator

    Ask Lasest Price
    Brand Name : Nide
    Certification : None
    Model Number : CZGL2-160-190W
    Price : Negotiable
    Delivery Time : 35 working days
    Payment Terms : T/T, L/C
    Supply Ability : 60 sets per month
    • Product Details
    • Company Profile

    stator Wedge inserting machine for all kinds of induction motor stator

    stator Wedge inserting machine for all kinds of induction motor stator

    Quick Detail:

    1. Model No.:CZGL2-160/190
    2. This wedge inserting machine is used for preparing wedge.
    3.It features as easy operation, fast tooling change.
    4. the machine is suitable for smal quantity with multi sizes stator production.

    (1) Technical parameter:

    Stack height: 20~160mm

    Stator ID:50-120mm

    Stator OD:≤190mm

    Efficiency:0.45s/s

    Power supply: 220V/ 50/60Hz 0.75Kw

    Weight:250Kg

    Dimension:1200*700*1100mm


    (2) Application:

    This wedge inserting machine is used fro wedge inserting expecially for simple winding inserting machine.


    (3) Machine function and characteristic:

    This wedge inserting machine is used for preparing wedge.It inserts the wedge into jig so that operator could transfer wedge into the depot of semi-auto coil inserting machine, Wedge feeding, edge folding(optional) and forming process are all done automatic by machine. It features as easy operation, fast tooling change, the machine is suitable for smal quantity with multi sizes stator production.

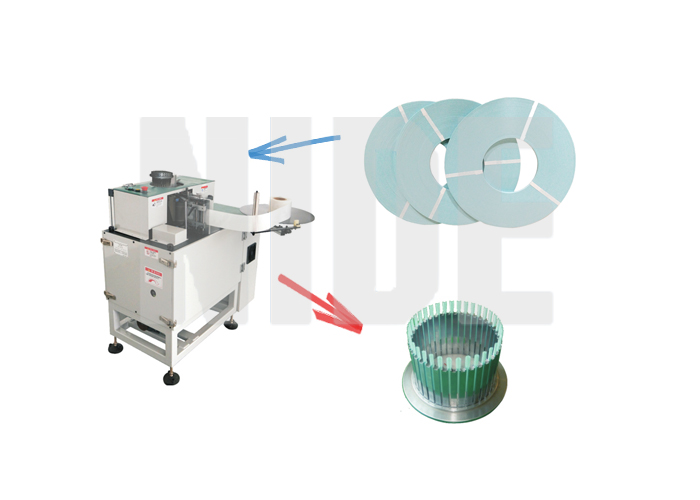

    Wedge inserting machine working process is as the below picture. It will cut, form and insert the wedge into the tooling automatically.


    Besides paper inserting machine, we also supply different types of electrical insulation materials for stator or armatures, such as insulation paper and insulation wedge with different class degree. DMD Class B/F, DM Class B/F, Polyester film Class E, Red Vulcanized Fiber Class A, NH& NHN, etc
    electrical insulation meterial motor winding insulation paper
