Electrical bike Wheel Motor Wedge Inserting Machine

    Buy cheap Electrical bike Wheel Motor Wedge Inserting Machine from wholesalers

    Buy cheap Electrical bike Wheel Motor Wedge Inserting Machine from wholesalers
    • Buy cheap Electrical bike Wheel Motor Wedge Inserting Machine from wholesalers

    Electrical bike Wheel Motor Wedge Inserting Machine

    Ask Lasest Price
    Brand Name : Nide
    Certification : None
    Model Number : DCCP2-200
    Price : Negotiable
    Delivery Time : 35 working days
    Payment Terms : T/T, L/C
    Supply Ability : 80 sets per month
    • Product Details
    • Company Profile

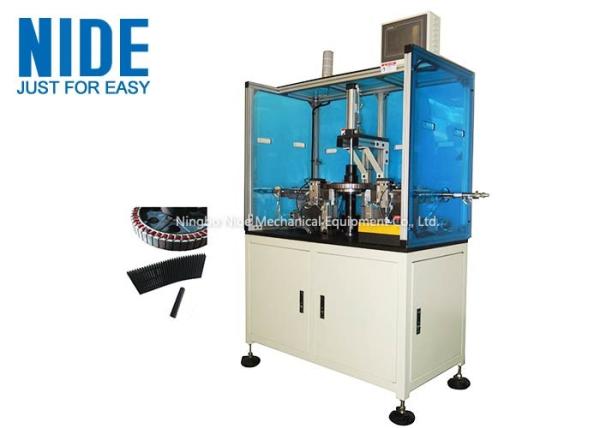

    Electrical bike Wheel Motor Wedge Inserting Machine

    Double Station Wheel Motor Wedge Inserting Machine for Electrical bike


    Quick Detail:

    1. The Wheel Motor Wedge Inserting Machine has double servo working sysytem.
    3. The Wheel Motor Wedge Inserting machine is used for inserting wedge to stator slots.
    4. The Wheel Motor Wedge Inserting Machine is easy to operate.
    This wedge inserting machine can automatically form, cut, and insert the wedge into stator slots. Our machine has a wide application. We also supply customized service.

    (1) Technical parameter:

    Stator diameter150~200mm
    Stator height18~35mm
    Insulation paper thickness0.188-0.25mm
    Power supply220V/ 50/60Hz 1.0Kw
    Weight550Kg
    Dimension1550*550*1500mm

    (2) Application:

    This wedge inserting machine is suitable for wheel motor stator.


    (3) Machine function and characteristic:

    This wedge inserting machine is designed for wheel motor stator slot paper insertion. It adopts double servo working system which dramatically improve the paper inserting efficiency. The parameter of stator slots number, feeding speed, indexing speed and indexing direction can be set in the HMI.


    (4)Competitive advantages
    Variety of application, easy operation.
    We directly supply our machine to many countries, like USA, France, Turkey, Iran, India, Brazil, Argentina, Mexico etc.
    We could customize machine for our customer.


    Wheel Motor Wedge Inserting Machine


    Besides paper inserting machine, we also supply different types of electrical insulation materials for stator or armatures, such as insulation paper and insulation wedge with different class degree. DMD Class B/F, DM Class B/F, Polyester film Class E, Red Vulcanized Fiber Class A, NH& NHN, etc
    electrical insulation meterial motor winding insulation paper
