    Servo Motor Wedge Cutting , Forming And Inserting Machine Fully Automatic

    Ask Lasest Price
    Brand Name : Nide
    Certification : None
    Model Number : ND-LSI-2WB
    Price : Negotiable
    Delivery Time : 35 working days
    Payment Terms : T/T, L/C
    Supply Ability : 800 sets per year
    • Product Details
    • Company Profile

    Servo Motor Wedge Cutting , Forming And Inserting Machine Fully Automatic


    Servo Motor Wedge Cutting , Forming And Inserting Machine Fully Automatic


    Quick Detail:

    1.This wedge inserting machine will automatically insert wedge into slots.
    2. The machine is used for inserting wedge to armature slots.
    3. it is easy to change the tooling.
    4. PLC controlled.
    5. It runs in high automation degree.
    Competitive advantages:

    This wedge inserting machine is easy for operation. It’s helpful for customer to reduce labor cost and improve production efficiency. And this machine can be equipped with an automatic feeding device to achieve a fully automatic operation. PLC and touch screen control.

    Description:

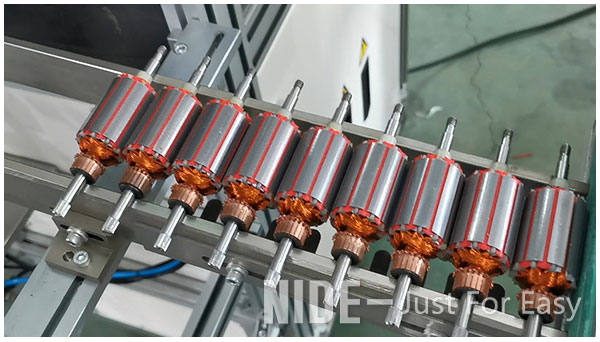

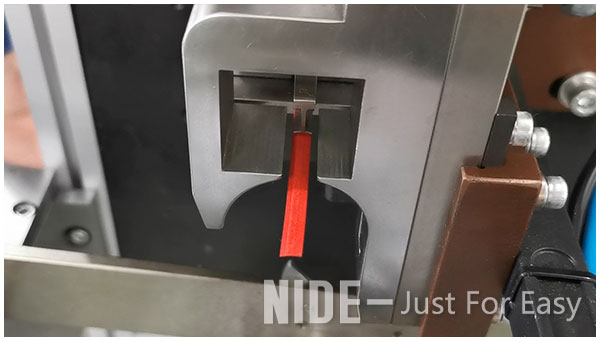

    Rotor wedge inserting machine is used for inserting the wedge of rotor. Rotor wedge inserting machine is applied to the field of mass production for rotor, and it is easy to change the tooling. Moreover, the machine body is light and elaborating.The complete machine is controlled by the Siemens programmable controller (PLC), which is made in German. It runs in high automation degree. If only the rotor to be processed is placed on the feeding track, the machine will finish the work such as the rotor lifting, clamping, shaping of the insulating paper, cutting and inserting automatically.

    Technical parameter

    Item

    Specification

    Armature O.D

    20~60mm

    Armature stack length

    20~60mm

    Shaft O.D

    3~17mm

    Slot number

    6~24 slots

    Efficiency

    7S/pc (if slot number is 12)

    Air source

    0.4~0.7MPa

    Rated power

    1.5KW

    Voltage

    AC220V, 50Hz


    Function and feature

    It is of high reliability to be under the control of Siemens PLC.
    The electromechanical linkage device and the faults detection system is mounted.
    Pneumatic workpiece clamping.
    The English operation system is availble.

    Besides paper inserting machine, we also supply different types of electrical insulation materials for stator or armatures, such as insulation paper and insulation wedge with different class degree. DMD Class B/F, DM Class B/F, Polyester film Class E, Red Vulcanized Fiber Class A, NH& NHN, etc
