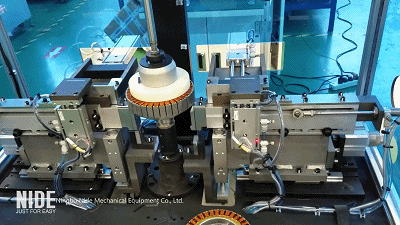

    Double Station Wheel Motor Wedge Inserting Machine for Electrical bike

    Ask Lasest Price
    Brand Name : Nide
    Certification : None
    Model Number : ND-RWI01
    Price : Negotiable
    Delivery Time : 60 working days
    Payment Terms : T/T, L/C
    Supply Ability : 120 sets per year
    • Product Details
    • Company Profile

    Double Station Wheel Motor Wedge Inserting Machine for Electrical bike

    Double Station Wheel Motor Wedge Inserting Machine for Electrical bike


    Quick Detail:

    1. The wheel hub motor slot wedge inserting machine has double servo working sysytem.
    2. The slot wedge inserting machine is used for inserting wedge to stator slots.
    3. The slot wedge inserting machine is easy to operate.

    (1) Technical parameter:

    Stator diameter150~200mm
    Stator height18~35mm
    Insulation paper thickness0.188-0.25mm
    Power supply220V/ 50/60Hz 1.0Kw
    Weight550Kg
    Dimension1550*550*1500mm

    (2) Application:

    The motor insulation wedge insertion is suitable for wheel motor stator.


    (3) Machine function and characteristic:

    This machine is designed for wheel motor stator slot paper insertion. It adopts double servo working system which dramatically improve the paper inserting efficiency. The parameter of stator slots number, feeding speed, indexing speed and indexing direction can be set in the HMI.



    Besides paper inserting machine, we also supply different types of electrical insulation materials for stator or armatures, such as insulation paper and insulation wedge with different class degree. DMD Class B/F, DM Class B/F, Polyester film Class E, Red Vulcanized Fiber Class A, NH& NHN, etc
    electrical insulation meterial motor winding insulation paper
