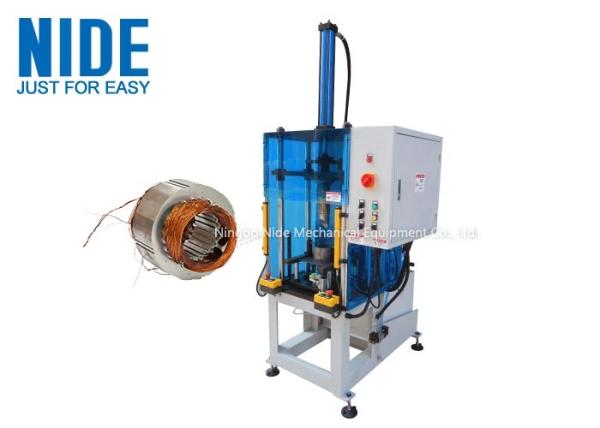

    Hydraulic Automatic low noise Stator Winding Coil Pre-Forming Machine

    Ask Lasest Price
    Brand Name : Nide
    Certification : CE
    Model Number : Z1XL1-200-210
    Price : Negotiable
    Delivery Time : 35 working days
    Payment Terms : T/T, L/C
    Supply Ability : 60 sets per month
    • Product Details
    • Company Profile

    Hydraulic Automatic low noise Stator Winding Coil Pre-Forming Machine


    Hydraulic Automatic low noise Stator Winding Coil Pre-Forming Machine


    Quick Detail:

    1. Model No.: Z1XL1-200/210
    2. After first time the stator inserting the winding, use this coil forming machine to expand the winding, so that the second time winding inserting will be easier and convenient.
    3. PLC and touch screen control.
    4. Hydraulic system driven.

    Specifications :

    Stator ID

    30~100mm

    Max. Stator OD

    160mm

    Stator stack length

    15~100mm

    Displacement of oil pump

    20F

    Power Supply

    380V/50/60Hz

    Machine productivity

    About 1500pcs/8hours

    Machine weight

    800kg

    Machine Dimension

    1200*700*2200mm


    Description:

    The semi automatic Stator Winding Pre-forming Machine is driven by hydraulic system; PLC programming; tooling expansion slice makes the first coli and inter-phase insulation paper in slot adjacent, leaving enough space for second insertion and ensurethe quality of successive coil insertion; apply to multi-layer stator winding insertion.


    Applications:

    After inserting the first winding, use this machine to form the winding into specified dimension, so that the next winding inserting could be easier and convenient. It is used for stator which meet the specification of below.


    Competitive advantages:

    Fast speed .

    low noise;

    simple operation and easy tooling change.

    PLC and touch screen control.


    Picture show

    stator coil forming machine

    induction motor stator coil forming machine


    Machine handling

    1. Use forklift for load and unload, pay attention to machine barycenter, shovel from the base part of machine bottom.
    2. Please use hoisting equipment with enough capacity for machine handling, otherwise it will result in machine fall, further causing accidents like machine breakdown even injuries and deaths.
    3. Remove all processed workpieces or unprocessed workpieces before moving the machine, check and make sure all sorts of fasteners is tight.
