    AC servo motor Automatic Simultaneous Stator Coil Winding Inserting Machine

    AC servo motor Stator Winding Inserting Machine , Coil Winding Machinery


    Quick Detail:

    1.This machine could dong coil winding and coil inserting automatically.
    2.This machine is used for induction motor stator.
    3. PLC and touch screen control.
    4. Simple operation, low noise, fast speed and high automaticity.

    Description:

    This machine is can do coil winding, coil inserting and wedge inserting simultaneously. It has four working stations. Two of them do the coil winding process. During winding, the coil will be auto wound to the tooling, so as to avoid the wire damage and snap caused by wire cross and disorder during manual wire transfer.The other two will do coil inserting and wedge inserting process.


    This machine can detect the wire coating damage. The inserting station is controlled by servo motor. The parameter can be set in the touch screen. With serval station working simultaneously, this machine is efficiency and saves labor cost.


    AC servo motor Automatic Simultaneous Stator Coil Winding Inserting Machine-1

    Specifications :

    Max stator O.D

    ≤φ150mm

    Stator I.D

    ≤φ110mm

    Stator stack length

    30-120mm

    Slot number range

    8~48 slots

    Appropriate Wire

    0.18-φ1.2mm

    Height of Coil3

    Appropriate wire

    Copper wire/Aluminum wire

    Winding inserting modechained/same core
    Pitch time≤40s/pc

    Voltage

    380V50/60Hz

    Power15Kw

    Air source

    0.6-0.8MPa

    Machine productivity

    400pcs/ 8 hours

    Machine Dimension

    2000×(W)1300×(H)2300mm

    Weight

    ≈4000Kg


    Applications:

    This simultaneous stator coil winding and coil inserting machine is suitable for air conditioner motor, washing machine motor, compression motor, fan motor, generator motor and pump motor.


    Machine running video links

    https://www.youtube.com/watch?v=RPJ7FrmjZ8o


    Competitive advantages:

    Variety of application, easy operation.

    We have Overseas Service Center.

    Machine is controlled by PLC. All the parameter can be set in the touch screen.

    It is suitable for stators with different model number and dimension.

    The operation and tooling change process is easy.

    We could customize machine for our customer as per their requirement.

    We directly supply our machines to many countries, like USA, France, Turkey, Iran, India, Brazil, Argentina, Mexico etc.

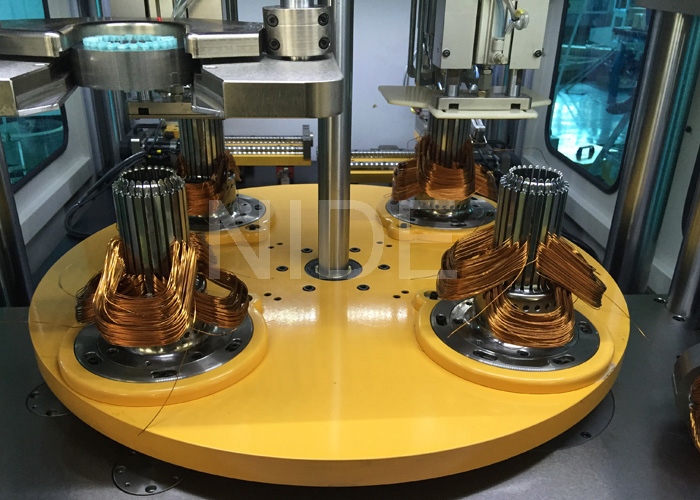

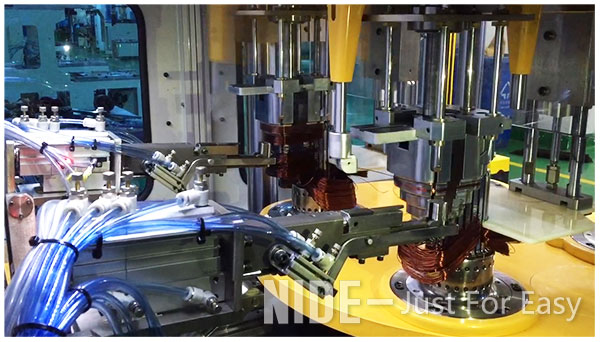

    The working station of this Automatic Simultaneous Stator Coil Winding and Coil Inserting Machine
