    Full - Automatic Stator Coil Forming Machine Hydraulic System Driven

    Ask Lasest Price
    Brand Name : Nide
    Certification : ce
    Model Number : Z3XJ1-300-250T
    Price : Negotiable
    Delivery Time : 35 working days
    Payment Terms : T/T, L/C
    Supply Ability : 100set/year
    • Product Details
    • Company Profile

    Full - Automatic Stator Coil Forming Machine Hydraulic System Driven


    Full - Automatic Stator Coil Forming Machine Hydraulic System Driven


    Quick Detail:


    1. This coil forming machine is used for stator coil final forming,
    2.The forming process is done by machine automatically
    3. it is driven by the hydraulic system
    4. It is controlled by the PLC.
    5. This forming machine is of highly efficiency and qualified forming.


    Technical parameter:

    Stator I.D

    50~100mm

    Stator O.D

    ≤160mm

    Stack height

    16~100mm

    Displacement of cylinder

    20F

    Power supply

    380V/50/60Hz 1.5KW

    Weight

    700Kg

    Dimension

    650*900*2300mm


    Description:

    Stator Coil Final Forming Machine is used for stator coil final forming, it is driven by the hydraulic system, controlled by the PLC. Its tooling design adopts flexible principles of inner expansion. The outer wrapping and edge forming form the stator winding. It can ensure appropriate winding outside dimension after lacing. It is of highly efficiency and qualified forming. High technology, stable performance and reasonable price.


    Required information for quotation: stator drawing before forming and after forming, including stator O.D, stator I.D, stator stack height, and end coil dimension.

    Competitive advantages:

    It is of highly efficiency and qualified forming. High technology, stable performance and reasonable price.


    Regular maintenance

    Regularly check if there is water in the filter. If yes, discharge the water.

    Regularly check if there is sufficient oil in the atomized lubricator. If not, replenish it.

    Regularly check the lubricating condition of guide mechanism, replenish if necessary.

    Check and clean up the electrical cabinet once every three months.

    Check solenoid valve screws and pipe connectors once every 3 months.

    Check filter once every 2 months.

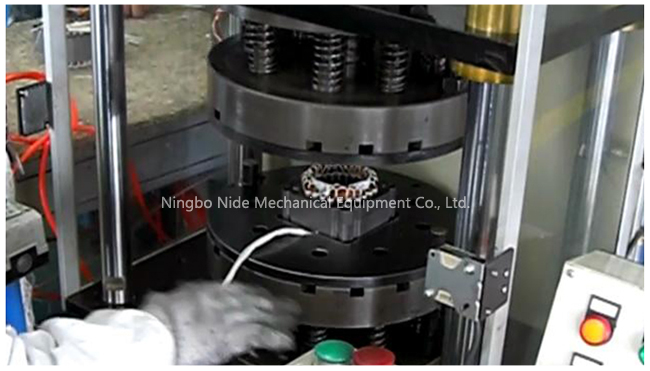

    Stator coil forming machine forming process

    final forming machine
