Semi-auto Armature Balancing Machine for electric motor

    Buy cheap Semi-auto Armature Balancing Machine for electric motor from wholesalers

    Buy cheap Semi-auto Armature Balancing Machine for electric motor from wholesalers
    • Buy cheap Semi-auto Armature Balancing Machine for electric motor from wholesalers

    Semi-auto Armature Balancing Machine for electric motor

    Ask Lasest Price
    Brand Name : Nide
    Certification : None
    Model Number : ND-B012
    Price : Negotiable
    Delivery Time : 35 working days
    Payment Terms : T/T, L/C
    Supply Ability : 60 sets per month
    • Product Details
    • Company Profile

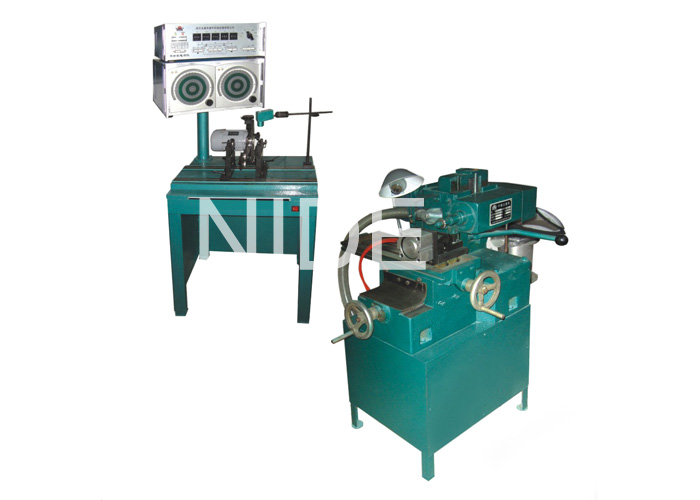

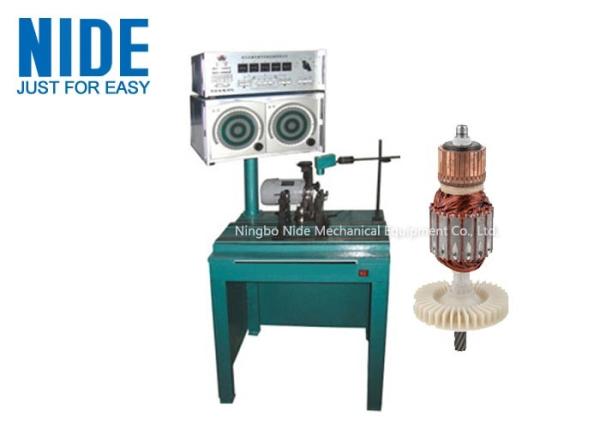

    Semi-auto Armature Balancing Machine for electric motor


    Semi-auto Armature Balancing Machine


    Quick Detail:

    1. Model No.:ND-B012
    2. This balancing machine is semi auto.
    3. Loading and unloading is done manually.
    4. Usually it equipped with a manual weight removing machine.
    5. The Max O.D. of armature is 260mm.

    Description:

    This kind of Armature Balancing Machine is a semi-automatic armature balancing machine, Armature load and unload is by manual. Usually it equipped with a manual weight removing machine.



    Technical data:

    Weight range of armature (kg)

    5

    Max O.D of armature (mm)

    φ260

    Distance between two supports (mm)

    50~400

    Shaft diameter range (mm)

    5~40

    Armature O.D range (mm)

    φ15~150

    Balancing speed (r/min)

    500-3000RPM

    Motor power (kw)

    0.12

    Min acquirable residual unbalancing value (emar)

    0.3g.mm/kg

    Unbalance reduction ratio URR

    >90%

    Machine weight (kg)

    330
