    Motorcycle Electrostatic Armature Powder Coating Machine System Three Phase

    Ask Lasest Price
    Brand Name : Nide
    Certification : None
    Model Number : ND-JF-100
    Price : Negotiable
    Delivery Time : 60 working days
    Payment Terms : T/T, L/C
    Supply Ability : 30 sets per month
    • Product Details
    • Company Profile

    Motorcycle Electrostatic Armature Powder Coating Machine System Three Phase


    Motorcycle Electrostatic Armature Powder Coating Machine System Three Phase


    Quick Detail:

    1. This machine is consisted of two set of equipment, one is power coating machine, the other is powder recycling machine.

    2, This power coating machine is widely used in mini rotor insulating coating, such as automotive, motorcycle, power cycle, toy and small electromotor of appliance.

    3, This machine is the most technical advanced product in electrostatic coating field


    Description:

    Armature Power Coating Machine Armature Slot Electrostatic Coating

    ND-JF 90G armature slot insulating power coating machine is the most technical advanced product in electrostatic coating field, which is widely used in mini rotor insulating coating, such as automotive, motorcycle, power cycle, toy and small electromotor of appliance.

    Working procedure:

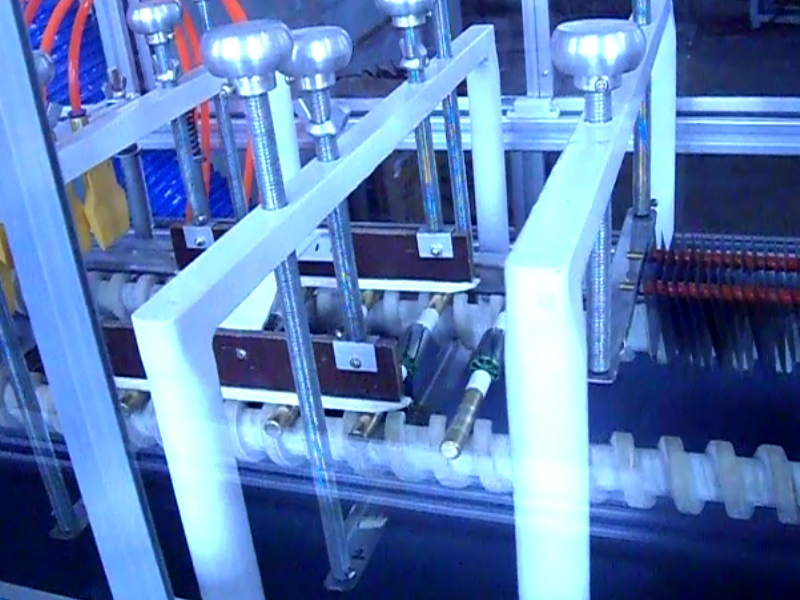

    Small motor is transported to fluid bed by screw for coating. Insulation power is equally coated on its surface, and then cured by high frequency heating. This machine consists of coating, curing, cooling and powder recycling. Except loading and unloading, the other processes are completed automatically.


    Specifications :

    Working piece max O.D:

    120mm

    Working piece max stack length

    70mm

    Working piece max shaft length

    180mm

    Recycle efficiency

    ≥95%

    Production efficiency:

    1500pcs/hour

    Coating thickness:

    0.15mm-0.5mm adjustable

    Line speed m/min:

    0.1-1.5m adjustable

    Screw rod length

    3500mm

    Feeding speed

    0~0.5RPM

    Static voltage

    0~60KN

    Static current

    ≤200μA

    Air source pressure

    0.5~0.7MPa

    Voltage

    380V three phase

    High frequency power

    30KW

    Total dimension

    4900mm*2500mm*2000

    Weight

    3000Kgs


    Applications:

    This machine is widely used in mini rotor insulating coating, such as automotive, motorcycle, power cycle, toy and small electromotor of appliance.


    Competitive advantages:

    This machine has a wide application, and easy for operation. The coated armature has shiny surface, even thickness, good electricity performance.
