    BLDC fan motor stator automatic needle winding Machine

    Ask Lasest Price
    Brand Name : Nide
    Certification : None
    Model Number : NXN1-100/150C
    Price : Negotiable
    Delivery Time : 60 working days
    Payment Terms : T/T, L/C
    Supply Ability : 600 sets per year
    • Product Details
    • Company Profile

    BLDC fan motor stator automatic needle winding Machine

    BLDC motor stator automatic needle winding Machine


    Quick detail

    1.The bldc winding machine equips with servo system.

    2. The automatic needle winding machine will automatically do winding process.

    3. The BLDC stator coil needle winding machine is easy to operate.

    4. The winding parameter can be set in touch screen.


    Description

    This stator coil inslot needle winding machine is suitable for winding BLDC stator. It equips with servo system. It can automatically intert wire end, winding, arraying, indexing, cutting, demolding. It can diagnose fault, count output, etc. Other function such as auto winding, multi-diameter wires winding, auto indexing, auto skip slot and winding speed could be programmed in the touch screen. This bldc winding machine is easy to operate and maintain.


    Technical parameter

    Product nameNXN1-100/150 BLDC stator needle winding machine
    Suitable OD≤150mm
    Suitable ID≥25mm
    Suitable thichness10~100mm
    Suitable wire diameter0.3-1.0mm
    Power supply220V/ 50/60Hz
    Weigth600Kg
    Deminsion1400*900*2000mm

    Application:

    This needle winding machine is suitable for winding fan motor and BLDC stator.


    Operating procedures
    1. Power on the BLDC winding machine
    2. Thread the wire
    3. Put stator to the working station table
    4. Adjust the tooling according to different model stator
    5. Set the stator diameter in the touch screen then select the pre-set data.
    6. Press "start" button.
    7. The needle winding Machine will automatically do winding.
    8. Take out the stator

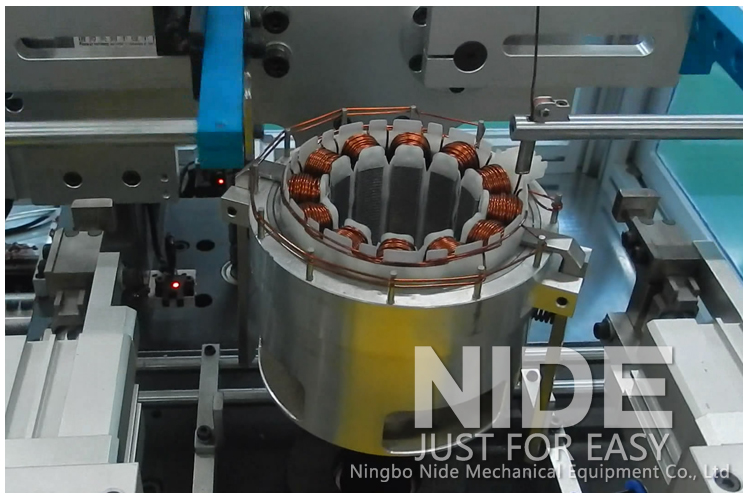

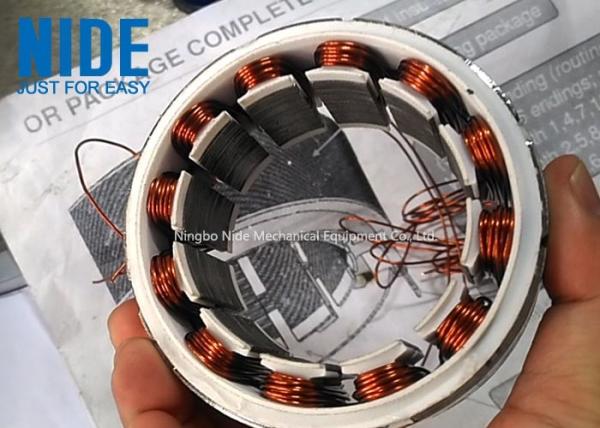

    The BLDC stator winding machine picture show

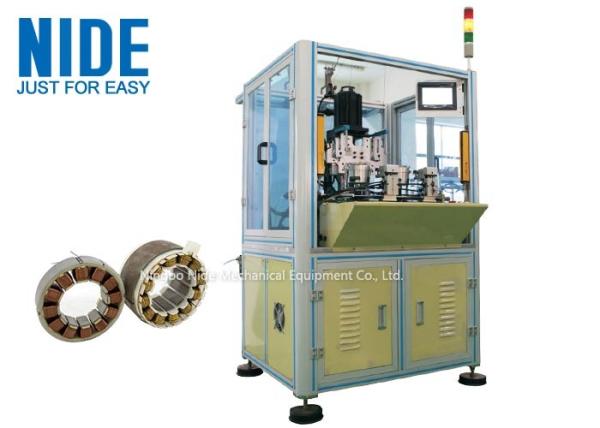

    The bldc needle winding machine picture display

    The stator coil needle winding machine for bldc motor working video
