    Vacumm Cleaner Motor Automatic Armature Trickling Impregnation Machine

    Ask Lasest Price
    Brand Name : Nide
    Certification : None
    Model Number : ND-ZDG63-200
    Price : Negotiable
    Delivery Time : 35 working days
    Payment Terms : T/T, L/C
    • Product Details
    • Company Profile

    Vacumm Cleaner Motor Automatic Armature Trickling Impregnation Machine

    Vacumm Cleaner Motor Automatic Armature Trickling Impregnation Machine


    Quick Detail:

    1. Machine Model number: ND-ZDG
    2. This machine is mainly used for armature insulation treatment.
    3. The whole process, except for loading and unloading armature, is completely automatically.
    4. Pitch time is adjustable.
    Description:

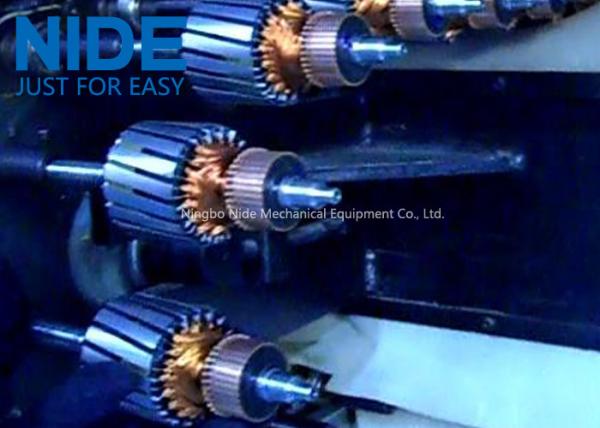

    Armature trickling machine is mainly used for armature insulation treatment. The whole process, except for loading and unloading armature, is completely automatically. Armature trickling machine can automatically finish the full procedure of pre-heating, air cooling, trickling (rolling), distribute even and post curing, etc. The automatic production guarantees the good and stable quality standard of the armature.In the trickling and post curing area, the armautre all along keeps rotary status, the varnish layer is distributed very even in the armature winding, accordingly ensure the good balance of armature. There is not varnish adhere to shaft and commutator, and therefore save the varnish remove process. Heating tunnel by hot wind circulation, it could ensure the temperature even and reliable.

    Competitive advantages:

    The whole process, except for loading and unloading armature, is completely automatically.


    Specification:

    76
    ZDG63-156
    50

    76
    ZDG63-156
    50

    76
    ZDG63-200
    50

    76
    ZDG63-260
    50

    ZDG50-320

    Working position

    124×2

    156×2

    200×2

    260×2

    320×2

    Position pitch

    mm

    76 63 50

    Heating time

    min

    ≤45

    Tunnel working

    temperature

    0~160℃

    Pitch time

    min

    0~10 adjustable

    Power

    kw

    28
    25
    22

    36
    28
    25

    45
    36
    28

    54
    45
    36

    40

    Machine dimension

    m

    4.9×1.6×2.1
    4.1×1.6×2.1
    3.2×1.6×2.1

    6×1.6×2.1
    5×1.6×2.1
    4×1.6×2.1

    7.6×1.6×2.1
    6.4×1.6×2.1
    5.1×1.6×2.1

    9.8×1.6×2.1
    8.2×1.6×2.1
    6.6×1.6×2.1

    3.3×1.6×2.5

    Weight

    t

    3.5
    3
    2.5

    4.2
    3.5
    3

    4.8
    4.2
    3.5

    5.8
    5.1
    4.3

    3.5
