    High Precision Stator Trickle Impregnation Machine For Household Electrical

    Ask Lasest Price
    Brand Name : Nide
    Certification : None
    Model Number : ND-ZCJB
    Price : Negotiable
    Delivery Time : 30 working days
    Payment Terms : T/T, L/C
    Supply Ability : 120 sets per year
    • Product Details
    • Company Profile

    High Precision Stator Trickle Impregnation Machine For Household Electrical

    High Precision Stator Trickle Impregnation Machine For Household Electrical


    Quick Detail:

    1. This rickle machine is used for stator insulation treatment..
    2. The Drop paint machine Machine Model number: ND-ZCJ.
    3. Heating time, picth time and temperature can be set.
    4. Varnish depth is 160mm.
    Description:

    Stator varnish dipping machine is used for stator insulation treatment. The whole process, except for loading and unloading, is completely automatically. Heating time, picth time and temperature can be set.

    Applications:

    This machine is suitable for stator which meet the below specification.

    Technical Data:

    Working position

    32

    Varnish depth

    160mm

    Bracket dimension

    900mm*300mm

    Productivity

    4000-5000pcs/20 hours

    Working temperature

    ≤145 C, adjustable

    Power

    75KW (electricity supply)

    15KW (diesel supply)

    Dimension

    8000mm*2200mm*2500mm (electricity supply)

    8000mm*4200mm*2800mm (diesel supply)


    FAQ

    Q: What is the production capacity of this machine?

    A: It depends on the customer's requirement, we could design the working position number and pitch time accordingly.

    Q: What kind of information is required for quotation?

    A: We need stator drawing,required production capacity, how many shift per day, and how many hours per shift, then we could provide the proposal accordingly.


    Information needed for Stator tickling machine inquiry
    It will be better if customer could send us detailed drawing including below information.
    1. Stator assembly drawing
    2. Required productivity
    3. Required curing time
    4. Other technical requirement
    If possible, it will be better if customer can send us samples.

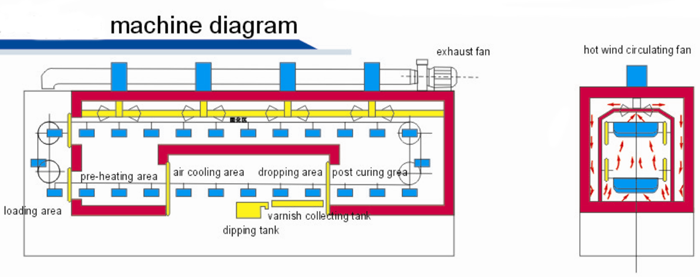

    Stator varnishing machine diagram
