    High Efficiency Motor Commutator Turning Machine / Equipment For Mixer Rotor

    Ask Lasest Price
    Brand Name : Nide
    Certification : None
    Model Number : ND-LHL-QSF4XC-S2
    Price : Negotiable
    Delivery Time : 45 working days
    Payment Terms : T/T, L/C
    Supply Ability : 60 sets per month
    • Product Details
    • Company Profile

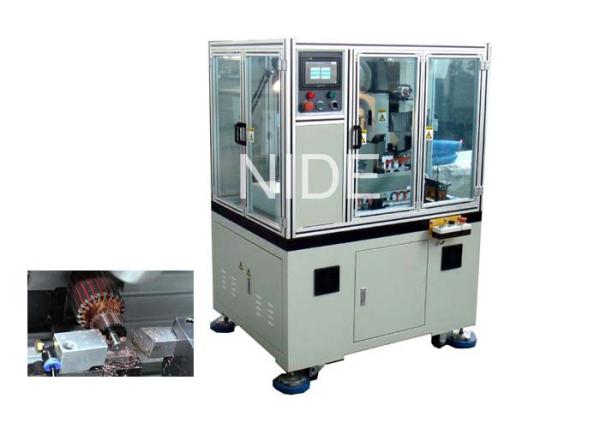

    High Efficiency Motor Commutator Turning Machine / Equipment For Mixer Rotor

    High Efficiency Motor Commutator Turning Machine / Equipment For Mixer Rotor



    Quick Detail:
    1, This machine is used for commutator turning, it is equipped with double cutters, commutator deburring equipment and dust collection.
    2, It is drived by servo motor.
    3. This machine is equipped with Mechanical arm and conveyor.
    4, The cutter moves in axial or radial direction. It is driven by three spindle servo motor.
    5.Three spindle servo motor controlling ensures the stable and precise cutter feeding.
    6, PLC and touch screen control.

    Description:

    This machine is suitable for turning commutator. With advanced design, good shape and high performance, this machine adopts servo control for cutter moving and turning. Mechanical parts are imported, thus the machine is high efficiency and strong reliability.
    Servo motor drives the belt rotating, meanwhile, the friction of flat belt and rotor surface make the rotor shaft high speed rotating on V block. Equipped with lubrication device and aluminum alloy frame, this machine features advance technology and modern shape, has easy operation system and self-checking system.
    Meanwhile, equipped with an automatic feeding device and mechanical arm, this machine can achieve a fully automatic operation.

    Specifications :

    Concentricity

    ≤0.0025-0.0035mm

    Roundness between bars

    ≤0.0015-0.0025mm

    Armature diameter range

    20~85mm

    Surface roughness

    ≤Ra 0.40

    Shaft length range

    32~200mm

    Armature shaft diameter range

    3~17mm

    Commutator O.D. range

    12~40mm

    Weight each cutting

    Max 0.20mm

    Speed frequency range

    0~90Hz

    Control

    PLC system

    Cutting speed

    PLC adjustable

    Efficiency

    Cycle≤10s per pc

    Air pressure

    4~6kg/cm2

    Fixture

    Diamond V block

    Motor Power

    2.5KW

    Frequency

    50/60Hz

    Weight

    1100Kg

    Voltage

    AC220V±10%

    Machine dimension

    850mm x 950 mm x 1,830mm


    Applications:
    This machine is suitable for commutator turning, it’s widely used in the motor field, such as wiper motor, vacuum cleaner motor, mixer motor, window lifter motor, condenser motor, power tool motor, DC motor, etc.
    This machine is suitable for armature within the specification of the below table.

    Competitive advantages:
    Equipped with an automatic feeding device and mechanical arm, this machine can achieve a fully automatic operation. Meanwhile, equipped with lubrication device and aluminum alloy frame, this machine features advance technology and modern shape, has easy operation system and self-checking system.
