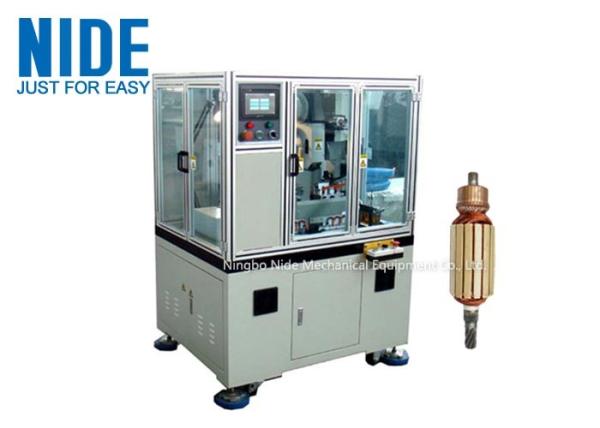

    Double cutter Armature Commutator Turning lathe Machine

    Ask Lasest Price
    Brand Name : Nide
    Certification : None
    Model Number : ND-LHL-QSFA2
    Price : Negotiable
    Delivery Time : 45 working days
    Payment Terms : T/T, L/C
    Supply Ability : 180 sets per year
    • Product Details
    • Company Profile

    Double cutter Armature Commutator Turning lathe Machine

    Servo double cutter Commutator Turning Machine


    Quick Detail:
    1, Servo double cutter Commutator Turning Machine is used for commutator turning, it is equipped with double cutters, commutator deburring equipment and dust collection.
    2, The cutter moves in axial or radial direction. It is driven by three spindle servo motor.
    3, Three spindle servo motor controlling ensures the stable and precise cutter feeding.
    4, PLC and touch screen control.
    5, Cutter feeding and cutting is controlled by servo motor.

    Specifications :

    Concentricity

    ≤0.0025-0.0035mm

    Roundness between bars

    ≤0.0015-0.0025mm

    Armature diameter range

    20~85mm

    Surface roughness

    ≤Ra 0.40

    Shaft length range

    32~200mm

    Armature shaft diameter range

    3~17mm

    Commutator O.D. range

    12~40mm

    Weight each cutting

    Max 0.20mm

    Speed frequency range

    0~90Hz

    Control

    PLC system

    Cutting speed

    PLC adjustable

    Efficiency

    Cycle≤10s per pc

    Air pressure

    4~6kg/cm2

    Fixture

    Diamond V block

    Motor Power

    2.5KW

    Frequency

    50/60Hz

    Weight

    1100Kg

    Voltage

    AC220V±10%

    Machine dimension

    850mm x 950 mm x 1,830mm


    Description:

    Automatic Commutator Turning Machine Servo Control Double Cutters
    ND-LHL-QSFA Servo double cutters commutator turning machine is suitable for turning commutator. With advanced design, good shape and high performance, this machine adopts servo control for cutter moving and turning. Mechanical parts are imported, thus the machine is high efficiency and strong reliability.
    The cutter moving in axial or radial direction is controlled by ball screws which are driven by three spindle servo motor. Turning times(4 times total) and cutter feeding value(≥1um) could be set up on touch screen according to user’s requirement. Three spindle servo motor controlling ensures the stable and precise cutter feeding.
    Servo motor drives the belt rotating, meanwhile, the friction of flat belt and rotor surface make the rotor shaft high speed rotating on V block. Equipped with lubrication device and aluminum alloy frame, this machine features advance technology and modern shape, has easy operation system and self-checking system.
    Meanwhile, this commtator turning machine can be equipped with an automatic feeding device to achieve a fully automatic operation.

    Applications:
    This machine is suitable for commutator fusing, it’s widely used in the motor field, such as wiper motor, vacuum cleaner motor, mixer motor, window lifter motor, condenser motor, power tool motor, DC motor, etc.
    This machine is suitable for armature within the specification of the below table.
    Competitive advantages:
    Equipped with lubrication device and aluminum alloy frame, this machine features advance technology and modern shape, has easy operation system and self-checking system.
    Meanwhile, this machine can be equipped with an automatic feeding device to achieve a fully automatic operation. PLC and touch screen control. Cutter feeding and cutting is controlled by servo motor.
