    Multistrand Type Coil Winding Equipment For Multiple Wire Parallel Coil Winding

    Ask Lasest Price
    Brand Name : Nide
    Certification : None
    Model Number : RX2-250
    Price : Negotiable
    Delivery Time : 35 working days
    Payment Terms : T/T, L/C
    • Product Details
    • Company Profile

    Multistrand Type Coil Winding Equipment For Multiple Wire Parallel Coil Winding


    Multistrand Type Coil Winding Equipment For Multiple Wire Parallel Coil Winding


    Quick Detail:


    1. Model No.: RX2-250
    2. it is specially designed for multiple wire parallel coil winding.
    3. This machine could set the function of arraying direction, winding start point, slow starting, slow ending, sides stop, auto width, auto reset, ect..
    4. it is easy to operate.

    Description:

    Multistrand Type Coil Winding Machine is specially designed for multiple wire parallel coil winding such as alternator, servo motor and three phase motor. Multistrand Type Coil Winding Machine adopts special purpose controller which could set the function of arraying direction, winding start point, slow starting,slow ending, sides stop, auto width, auto reset, ect.

    Technical parameter:

    Swing diameter

    ≤350mm

    Effective length of tooling

    ≤400mm

    Parallel wire number

    ≤16 pcs

    Wire diameter

    0.2~1.5mm

    Wire array width

    450 mm

    Power supply

    220V/50/60Hz 1.5Kw

    Air pressure

    0.4~0.6MPa

    Weight

    900Kg

    Dimension

    1550mm*1250mm*1550mm


    Competitive advantages:

    This machine could set the function of arraying direction, winding start point, slow starting, slow ending, sides stop, auto width, auto reset, ect..

    Variety of application, easy operation.

    We have Overseas Service Center.

    It is suitable for rotor or stator with different model number and dimension.

    The operation and tooling change process is easy.

    We could customize machine for our customer as per their requirement.

    We directly supply our machines to many countries, like USA, France, Turkey, Iran, India, Brazil, Argentina, Mexico etc.

    The wire has been wound in the tooling

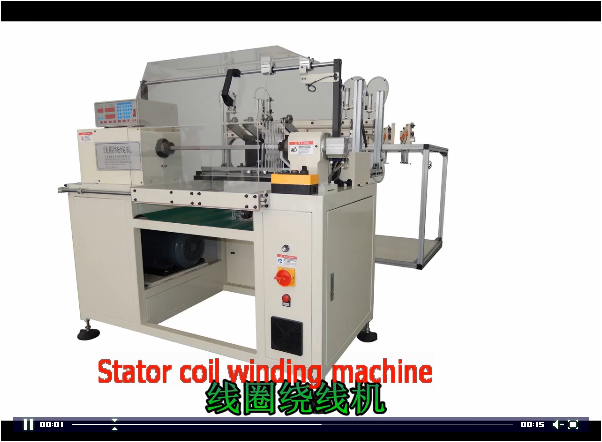

    coil winding machine
