    Automatic Stator Vertical Coil Winding Machine With Single-head and Double Station

    Ask Lasest Price
    Brand Name : Nide
    Certification : None
    Model Number : RXL1-160
    Price : Negotiable
    Delivery Time : 35 working days
    Payment Terms : T/T, L/C
    Supply Ability : 800 sets per month
    • Product Details
    • Company Profile

    Automatic Stator Vertical Coil Winding Machine With Single-head and Double Station


    Automatic Stator Vertical Coil Winding Machine With Single-head and Double Station


    Description:

    This Vertical Type Stator Coil Winding Machine is a kind of single-head and double-station automatic winding machine; automatic put the coil into tradsfer former orderly;

    especially suitable for high slot filling rate, small notch stator; winding mode such as automatic skip, automatic cutting and automatic indexing can be finished at a time successively;

    parameter could be set in human-machine interface,

    winding tension is adjustable;

    obtain continuous/discontinuous winding way and meets the 2 poles, 4 poles and 6 poles coils winding,


    Quick Detail:

    1. This Automatic Stator Vertical Coil Winding machine is suitable for winding stator coil.
    2. The coil Winding tension is adjustable.
    3. This stator coil winding machine can meet continuous/discontinuous winding way and 2 poles, 4 poles and 6 poles coils winding,
    4. It is high automation and easy for operating,so that save cost.



    Technical data:

    Wire diameter range

    0.2-1.2mm

    Fly fork diameter

    300mm

    Winding head

    1

    Max stack height

    100mm

    Max stator OD

    160mm

    Jump file number

    1-5

    Max RPM

    2000RPM

    Air pressure

    0.4mpa

    Power supply

    380V- 50/60HZ 7KW

    Weight

    1000kg

    Dimension

    1500 X600 X2200mm


    Competitive advantages:

    Variety of application, easy operation.


    stator winding machine

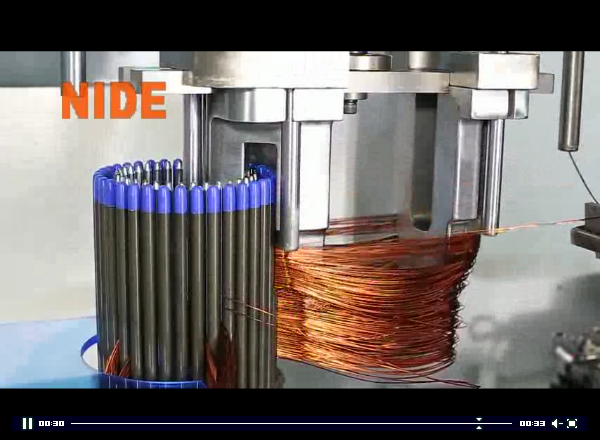

    Click the below picture to view the video.

    stator coil winding machine


    With good service, unique philosophy, professional team and reliable quality, we win the worldwide customers' confidence gradually. We directly and indirectly supply our products to more than 50 countries .

    Customerized service1. Customized product design and manufacturing
    2. Customized tranning
    3.Technical suggestions
    After-sales service1. Warranty Period: 12 month usually
    2. Overseas service center available

    3. Engineers available to service overseas


    Automatic Stator Vertical Coil Winding Machine With Single-head and Double Station

    NIDE is a company devoted in the field of electric motors manufacturing, providing one-stop service for its customers.

    NIDE has three main business divisions.

    The first division is to provide different kinds of motor manufacturing machines, it is our Main business, including stand along machine, fully-auto complete line for armature and stator production, and the motor assembly line.

    The second division is to supply the full range of motor components such as commutator, ball bearing, carbon brush, insulation paper, shaft, magnet, fan, motor cover, etc.

    The third division is to provide technical support and consulting, project support and turn-key service for some motor manufacturing.
