    Four working station automatic stator winding and coil inserting machine

    Ask Lasest Price
    Brand Name : Nide
    Certification : None
    Model Number : R2QL1-120/150
    Price : Negotiable
    Delivery Time : 35 working days
    Payment Terms : T/T, L/C
    Supply Ability : 600 sets per year
    • Product Details
    • Company Profile

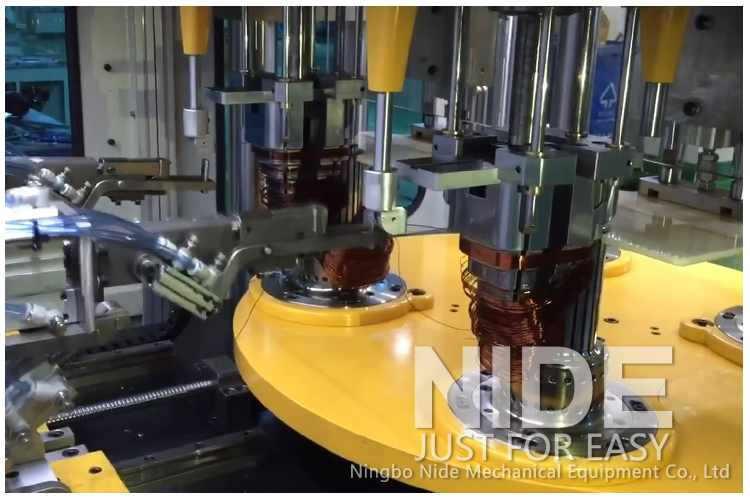

    Four working station automatic stator winding and coil inserting machine

    Four working station automatic stator coil winding and coil inserting machine


    (1) Main technicaldata


    Stator OD:≤φ150mm
    Stator ID:≤φ110mm
    Stator Stack Height:30-120mm
    Height of Coil:3
    Appropriate Wire:φ0.18-φ1.2mm
    Winding inserting mode:chained / same core
    Pitch time:≤40s/pc
    Air Pressure:0.6-0.8MPa
    Power supply:380V 50/60Hz 15Kw
    Weight :≈4000Kg
    Dimension:(L)2000×(W)1300×(H)2300mm


    (2) Application


    The automatic coil winding and inserting machine is suitable for air conditioner motor, compression motor, generator motor and pump motor, fan motor, washing machine motor.


    (3) Machine mainfunction and characteristic


    This automatic stator winding and inserting machine is can do coil winding, coil inserting and wedge inserting.

    During winding, the coil will be auto wound to the tooling, so as to avoid the wire damage and snap caused by wire cross and disorder during manual wire transfer.

    This coil winding and inserting machine can detect the wire coating damage.

    The inserting station is controlled by servo motor. The parameter can be set in the touch screen.
    With serval station working simultaneously, this machine is efficiency and saves labor cost.
