    Horizontal Stator Insulation Paper Inserter Equipment Low Noise Fast Speed

    Ask Lasest Price
    Brand Name : Nide
    Certification : None
    Model Number : CZDW1-190/210
    Price : Negotiable
    Delivery Time : 60 working days
    Payment Terms : T/T, L/C
    Supply Ability : 100 sets per year
    • Product Details
    • Company Profile

    Horizontal Stator Insulation Paper Inserter Equipment Low Noise Fast Speed


    Horizontal Stator Insulation Paper Inserter Equipment Low Noise Fast Speed


    Application:

    It is suitable exclusively for large and medium-size motors, especially suitable for generator, deep pump motor,three phase machine, etc..


    Quick Detail:

    1. Model No.: CZDW1-190/210
    2. It is suitable exclusively for large and medium-size motors.
    3. This machine is characterized by low noise, fast speed, excellent forming,
    4. it is convenient and easy for different slot number stator production and changing tooling.
    5. It is suitable for generator, deep pump motor, three phase machine, etc..

    Description:

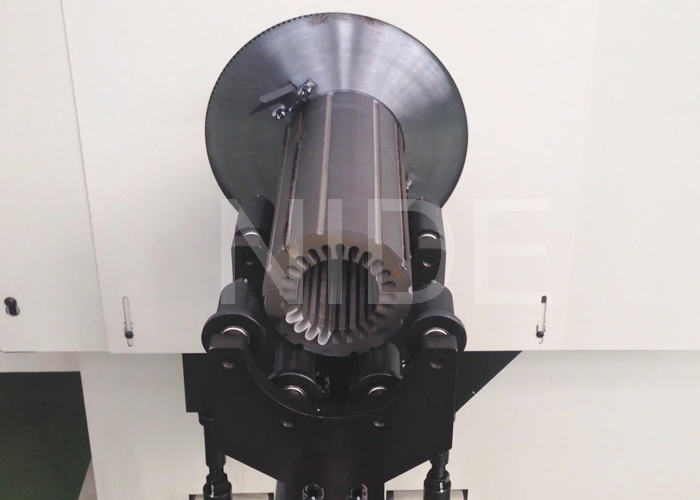

    Horizontal Stator Insulation Paper Inserting Machine is suitable exclusively for large and medium-size motors, inserting insulation paper automatically from bottom of stator slot; automatic paper feeding, edge folding and forming; characterized by low noise, fast speed, excellent forming, etc.; slot number change is controlled by electric; interval slot inserting and skip slot inserting could be at option; it is convenient and easy for different slot number stator production and changing tooling. Especially suitable for generator, deep pump motor,three phase machine, etc..



    Technical Parameter:

    Stator ID

    φ80-φ150

    Stator Laminated thickness

    60-190mm

    Height of edge folded

    3-7mm

    Max insulation paper'sthickness

    0.35mm

    Feeding length

    15-50

    Tack time

    0.7-1 S/slot

    Power

    380V 50- 60HZ

    Dimension

    1100*900*1500mm

    Weight

    550KG


    Competitive advantages:

    This machine is characterized by low noise, fast speed, excellent forming, it is convenient and easy for different slot number stator production and changing tooling.


    Besides the paper inserting machine, we also supply insulation material for stators or armatures, with different thermal class and dimension.


    Besides paper inserting machine, we also supply different types of electrical insulation materials for stator or armatures, such as insulation paper and insulation wedge with different class degree. DMD Class B/F, DM Class B/F, Polyester film Class E, Red Vulcanized Fiber Class A, NH& NHN, etc
