Automatic Electric Motor Armature Winding Machine

Ask Lasest Price
Brand Name :	Nide
Certification :	None
Model Number :	ND-LAW-5B2
Price :	Negotiable
Delivery Time :	60 days
Payment Terms :	T/T, L/C
Supply Ability :	900 sets per year

Add to Cart

Product Details
Company Profile

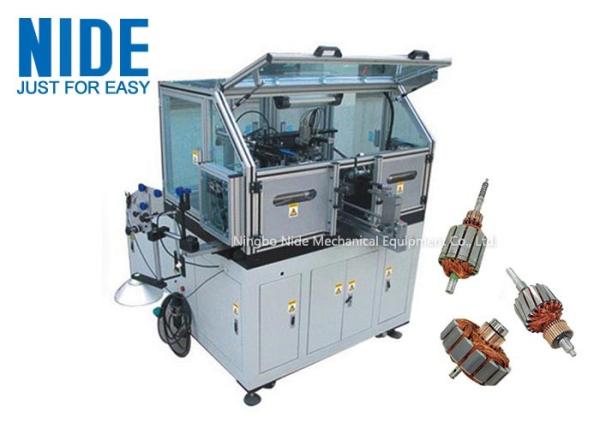

Automatic Electric Motor Armature Winding Machine

3 phase motor Armature Winding Machine automatic coil winding machine

This automatic armature winding machine is used for automatically hook type commutator armature winding, it is suitable for winding medium and big wire diameter armature. Automatic feeding, winding,indexing and wire cutting, only load and unload armature from material loader. Equipped with touch screen and PLC, winding parameter could be set and modified on the screen. We also have armature winding machine equipped with conveyor, operator only need to put several pieces of armature on the conveyor at one time, then machine will finish all the armatures automatically. Below parameter is our standard machine, we could produce machine according to customer's armature accordingly.

Technical Parameter:

Item	Specification
Wire diameter	Magnetichysteresis method:0.16~0.55mm
Wire diameter	Electriccontrol method:0.30~0.85mm
Armature O.D range	20~60mm
Stack length	20~60mm
Shaft diameter	3~17mm
Shaft length	Less than 300mm
Armature slot	Even slot
Turn number	0~9999
Commutator diameter	12~40mm
Winding speed	0~3000 rpm
Winding motor power	1.5KW * 2
Angle detecting speed	0~3000 rpm
Angle detecting motor power	0.75KW *1
Air supply pressure	4~6 Kg/cm2
The machine total power	4.0 KW
Voltage	Three phase AC380V50/60Hz
Weight	1200Kg
Dimension	2000(length)X1300(width)X1800(height)mm

Production efficiency of this machine
Around 1000pcs/8 hours,it is only a rough idea, depends on the armature slots number and turn number.

The operation steps of this machine
Load armature on the shuttle manually, press START button,shuttle will deliver the armature to the winding position, and automatic winding, indexing and wire cutting,after completing, the shuttle will take out the finished armature from winding position, operator unload the finished armature, one cycle is completed.

Common malfunction of this machine
Sometimes, there is servo alarm displayed on the touchscreen. In this case, there will be error code displayed on the servo driver(at the backside of machine), you could identify the problem according to the error code. The most common malfunction is the encoder cable which connects the servo driver and servo motor is loose, just need remove and reinsert the encoder cable again, problem will be solved.

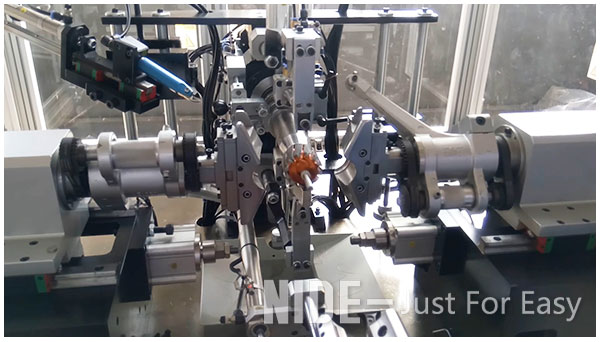

The Picture show
