    Muti Pole Stepping Motor Stator Needle Winding Machine High Accurate And Automatic

    Ask Lasest Price
    Brand Name : Nide
    Certification : None
    Model Number : ND-DDR-1-H
    Price : Negotiable
    Delivery Time : 35 days
    Payment Terms : T/T, L/C
    Supply Ability : 100 sets per year
    • Product Details
    • Company Profile

    Muti Pole Stepping Motor Stator Needle Winding Machine High Accurate And Automatic


    Muti Pole Stepping Motor Stator Needle Winding Machine High Accurate And Automatic


    (1) Stator Needle Winding Machine Main technical parameter:

    Production name:ND-DDR-1-H Automatic mult-polts BLDC motor stator needle coil winding machine
    Stator O.D:≤140mm
    Stator ID:≥15mm
    Wire range:0.10-0.60mm
    Stator stack length(including bobbin):5~100mmm
    slot number:four
    Stator slot width:≥1.5mm
    Winding speed range:0-380rpm
    Voltage:220V/60HZ, three phase

    (2) Stator Needle Winding Machine Description:

    This automatic bldc motor Stator coil Winding Machine can Wind Four slots at the same time,

    And auto winding, auto wire acrossing, auto wire clamping, auto wire cutting

    With aluminium alloy protection cover to cover the gear unit

    Only Manually load/unload stator, after cylinder press the stator tight, automatically wind the stator

    Magnetic constant torque tensioner


    (3)Instructions for use:

    Manually put stator into the fixture press "start" button lock the stator by cylinder, automatic winding, lift stator cut the wire


    (4)Competitive advantages:

    Easy operation, high automation. PLC and touch screen control..

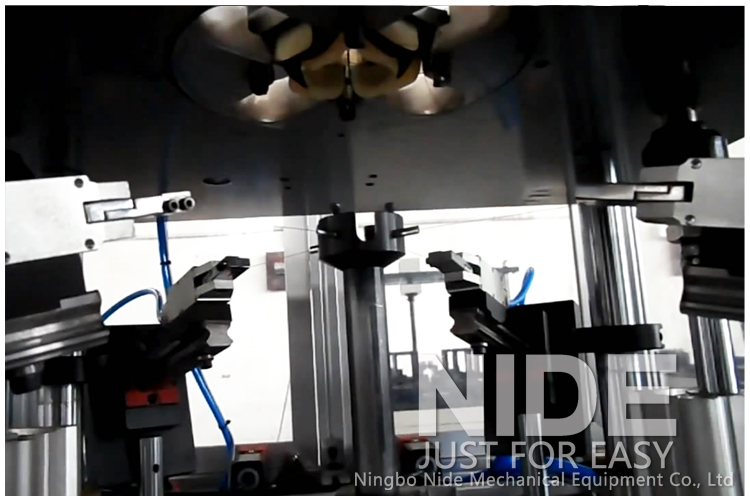

    Muti Pole Stepping Motor Stator Needle Winding Machine video

    https://youtu.be/xkvHU2ADThc

    4 slot BLDC motor stator coil winding machine
