    NIDE Full-automatic small stator coil final forming machine electric motor

    Ask Lasest Price
    Brand Name : nide
    Model Number : Z3XJ2-150-160T
    Certification : none
    Price : negotiable
    Supply Ability : 200 sets
    Delivery Time : negotiable
    Payment Terms : L/C, T/T
    • Product Details
    • Company Profile

    NIDE Full-automatic small stator coil final forming machine electric motor

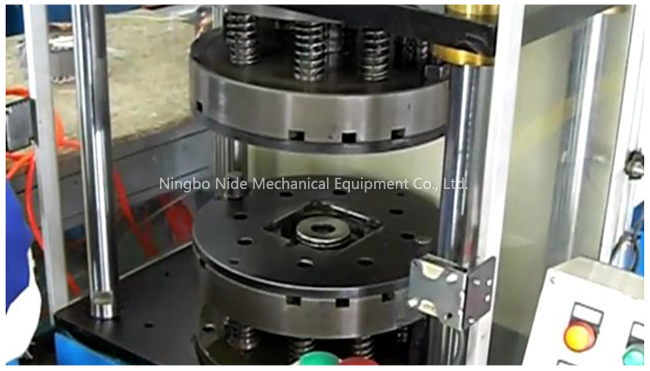

    NIDE Full-automatic small stator coil final forming machine


    (1) Technical data of stator final forming machine

    Product Namestator coil final forming machine
    Stator ID30~110mm
    Stator ODMax. 160mm
    Stack length20~150mm
    Winding overhang range15--50mm
    Displacement of cylinder20L/min
    Power380V/50/60HZ 1.5KW
    Machine weightabout 600kg
    Machine dimensionL850*W1000*H2300mm

    (2) Application of stator final forming machine

    The stator final forming mahcine is suitable for air conditioner motor, washing machine motor, compression motor, fan motor, generator motor and pump motor.


    (3) Machine main function and characteristic of stator final forming machine

    This machine adopts whole hydraulic system and PCL program.

    This machine can adjust the forming stack length by changing washer.

    Both slot paper and wedge should not be damaged or turned over. The stator should not be deformation or stator lamination should not be upward. There is no wire enamel broken.

    Production capacity ≤13s/set (exclude loading/unloading time)

    Primary qualification rate ≥99.5%, after rework, the rate ≥99.9%

    This machine adopts safety grating protection system. Operator need to stand when operating.

    Machine adopts two hands simultaneously start button to ensure safety.
