    Electirc motor rotor commutator turning machines for armature

    Ask Lasest Price
    Brand Name : nide
    Model Number : ND-LHL-QSFA
    Certification : none
    Price : NEGOTIABLE
    Supply Ability : 600 SETS PER YEAR
    Delivery Time : 60 working days
    Payment Terms : L/C, T/T
    • Product Details
    • Company Profile

    Electirc motor rotor commutator turning machines for armature

    NIDE CNC electirc motor commutator turning machines for armature rotor with PLC


    (1) Main technical data of armature electirc motor commutator turning machine


    Product NameND-LHL-QSFA1electirc motor commutator turning machine
    Armature diameter limit20~85mm
    Roundness between bars≤0.0015-0.0025mm
    Concentricity≤0.0025-0.0035mm
    Shaft length limit32~200mm
    Armature shaft diameter limit3~17mm
    Commutator OD limit12~40mm
    Weight each cuttingMax 0.20mm
    Speed frequency limit0~90Hz
    ControlPLC system
    Cutting speedPLC adjustable
    EfficiencyCycle≤10s per pc
    Surface roughness≤Ra 0.40
    FixtureDiamond V block
    Air pressure4~6kg/cm2
    Frequency50/60Hz
    Motor Power2.5KW
    VoltageAC220V±10%
    Machine dimension850mm x 950 mm x 1830mm
    Mchine Weight1100Kg

    (2)Applications of armature electirc motor commutator turning machine

    The rotor electric motor commutator turning machine is widely used in the motor field, such as wiper motor, vacuum cleaner motor, mixer motor, window lifter motor, condenser motor, power tool motor, DC motor, etc.



    (3) Machine function and characteristic of armature electirc motor commutator turning machine

    Equipped with lubrication device and aluminum alloy frame, this commutator turning machine features advance technology and modern shape, has easy operation system and self-checking system.

    Meanwhile, this machine can be equipped with an automatic feeding device to achieve a fully automatic operation. PLC and touch screen control. Cutter feeding and cutting is controlled by servo motor.

    Servo motor drives the belt rotating, meanwhile, the friction of flat belt and rotor surface make the rotor shaft high speed rotating on V block. Equipped with lubrication device and aluminum alloy frame, this machine features advance technology and modern shape, has easy operation system and self-checking

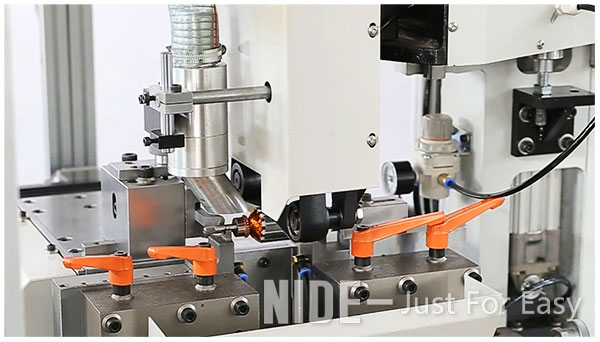

    commutator turning machine

    armature turning lathe machine

    The armature commutator turning machine video

    armature commutator turning machine video
