    Four station automatic stator coil Winding Machine for fan motor

    Ask Lasest Price
    Brand Name : nide
    Model Number : RXL7-100
    Certification : ccc
    Price : negotiable
    Supply Ability : 75 sets per year
    Delivery Time : 65 working days
    Payment Terms : L/C, T/T
    • Product Details
    • Company Profile

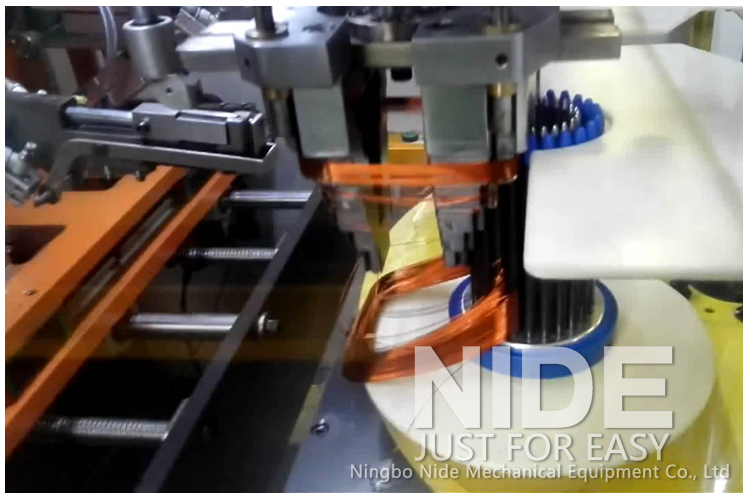

    Four station automatic stator coil Winding Machine for fan motor

    Automatic Four station automatic stator coil winder for fan motor


    (1) Application of the Four station automatic stator coil winder

    This Automatic Four station stator coil winding machine has two winding heads with four working station. The main phase and auxiliary phase can be wound simultaneously. Therefore, the user no need to buy two separate machines to wind main phase and auxiliary phase.

    This coil winder machine is suitbale for high production capacity, high slot filling rate, small slot opening stator coil winding.

    Different coil winding mode can be selected in the touch screen, like auto skip, auto cutting and auto indexing. Other parameter also can be set in the touch screen, like continuous /discontinuour winding method.


    (2) Main technical data of the Four station automatic stator coil winder

    Product nameRXL7-100 Four station stator coil winder
    Winding head2pc
    Wire diameter0.18~1.2mm
    Winding speed≤2500RPM
    Max stack OD200mm
    Max stack height150mm
    Fly fork diameter400mm
    Transfer number1~5 section
    Power supply380V/50/60HZ 7.5KW
    Weightabout 2000kg
    DimensionL1900*W1100*2100mm

    (3) Application of the Four station automatic stator coil winder

    This 4 working stations stator coil winding machine is suitable for 2 poles, 4 poles and 6poles coils winding.


    (4)Information needed for Automatic Stator Coil Winding Machine inquiry

    It will be better if customer could send us detailed drawing including below information.

    1. Stator drawing
    2. Stator winding drawing
    3. Winding distribution drawing
    4. Other technical requirement
    If possible, it will be better if customer can send us samples.
