    Highly active stator insulation paper insertion machine for motor winding

    Ask Lasest Price
    Brand Name : nide
    Model Number : CZSL1-80-135
    Certification : ce
    Price : negotiable
    Supply Ability : 120 sets per year
    Delivery Time : 60 working days
    Payment Terms : L/C, T/T
    • Product Details
    • Company Profile

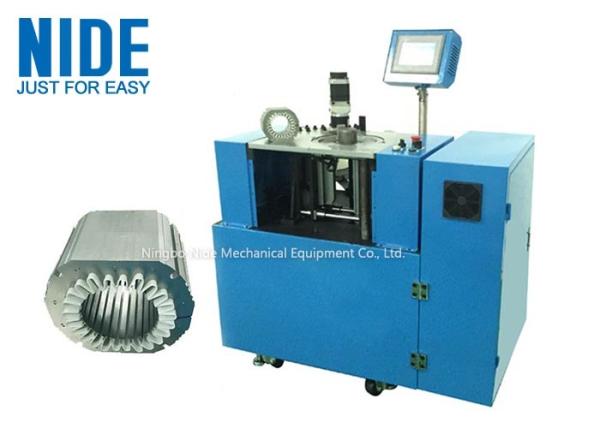

    Highly active stator insulation paper insertion machine for motor winding

    Highly active improved model stator insulation paper inserting machine for motor winding


    (1) Application of stator insulation paper inserting machine

    The stator insulation paper inserting machine is suitable for series electric motor winging ,BLDC motor and stepping motor stator.


    (2) Technical parameter of stator insulation paper inserting machine


    Product namestator insulation paper inserting machine
    Stator OD≤135mm
    Stack Height10-100mm
    Material's Thickness≤0.35mm
    Pitch time≤1s/slot
    Air Pressure0.4-0.6MPa
    Power supply220V 50/60Hz 3Kw
    Machine Weight≈420Kg
    Machine Dimension(L)1500×(W)650×(H)1480mm

    (3) Machine function and characteristic of stator insulation paper inserting machine

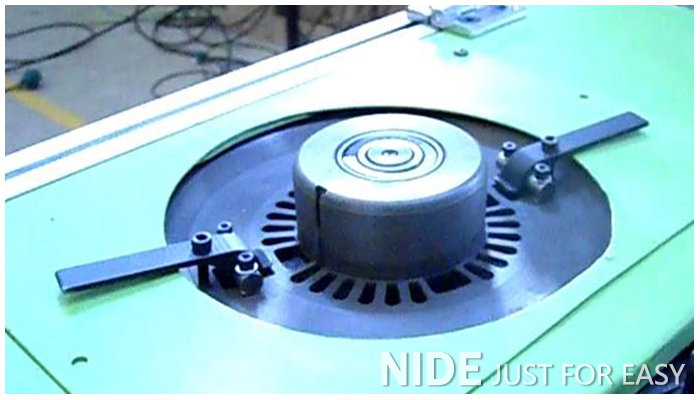

    This paper inserting machine is designed for inner stator to do insulation paper inserting.

    It adopts mechanical driven system, servo system and pneumatic system.

    As a result, the machine can automatically do positioning, pressing, paper feeding, paper forming, paper pushing.

    The paper edge can be auto chamfered so as to solve the winding problem caused by paper, and improve the percent of pass of stator.

    This paper inserting machine is easy to operate, of high automation, and suitable for series motor, BLDC motor and stepping motor stator.

    Besides paper inserting machine, we also supply different types of electrical insulation materials for stator or armatures, such as insulation paper and insulation wedge with different class degree. DMD Class B/F, DM Class B/F, Polyester film Class E, Red Vulcanized Fiber Class A, NH& NHN, etc
    electrical insulation meterial motor winding insulation paper
