    Motor Armature And Stator Slot Insulation Paper Wedge Inserting Machine 220V 60Hz

    Ask Lasest Price
    Brand Name : nide
    Model Number : CG1-100
    Certification : CE
    Price : negotiable
    Supply Ability : 500 sets per year
    Delivery Time : 30 working days
    Payment Terms : L/C, T/T, D/A, D/P
    • Product Details
    • Company Profile

    Motor Armature And Stator Slot Insulation Paper Wedge Inserting Machine 220V 60Hz

    Motor stator slot insulation paper wedge forming and cutting machine for armature rotor


    (1) Technical parameter of the stator slot paper forming and cutting machine

    Product nameCG1-100 paper wedge forming and cutting machine
    Paper feeding length10~200mm
    Paper cutting thickness0.2-0.5mm
    Paper cutting speed120pcs/min
    Power supply220V/ 50/60Hz
    Machine Weight150Kg
    Machine Dimension450*650*1100mm

    (2) Application of the stator slot paper forming and cutting machine

    This insulation paper wedge forming and cutting machinemachine is used for wedge forming and cutting.

    It is used for electric motor armature rotor and stator.


    (3) Machine function and characteristic of the stator slot paper forming and cutting machine

    This wedge forming and cutting machine is equipped with a double row mould for paper cutting, stepping motor for controlling paper feeding action, human machine interface for setting feeding length and a heating device which is used before forming.

    Cutting speed and heating temperature are adjustable.

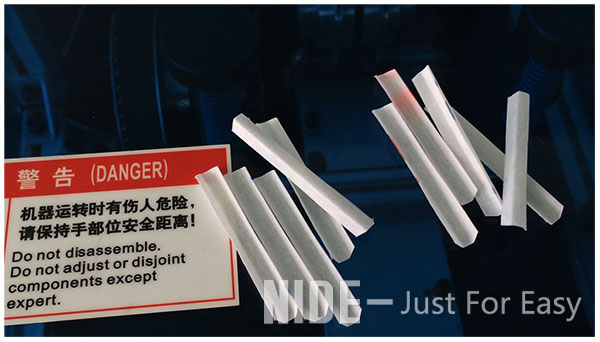

    (4) Picture show


    electrical-motor-insulation-material-paper-cutting-machine91

    electrical-motor-insulation-material-paper-cutting-machine92


    The stator insulation wedge forming and cutting machine youtube video https://youtu.be/CyRMSOyQyd8


    Besides paper inserting machine, we also supply different types of electrical insulation materials for stator or armatures, such as insulation paper and insulation wedge with different class degree. DMD Class B/F, DM Class B/F, Polyester film Class E, Red Vulcanized Fiber Class A, NH& NHN, etc
    electrical insulation meterial motor winding insulation paper
