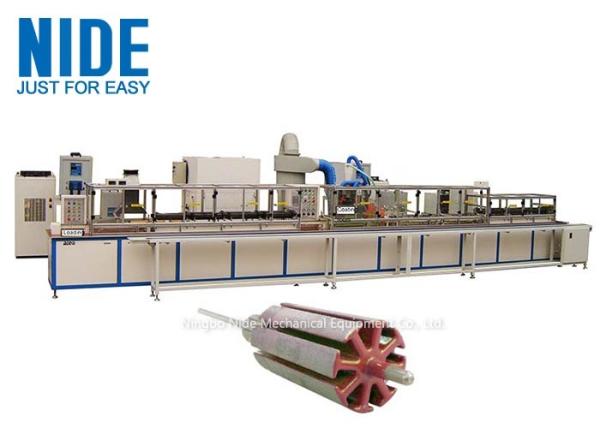

    Automatic Armature Powder Coating Equipment / Rotor Powder Coating Oven

    Ask Lasest Price
    Brand Name : nide
    Model Number : ND-JF-80GD
    Certification : CE
    Price : negotiable
    Supply Ability : 30 sets per year
    Delivery Time : 75 working days
    Payment Terms : L/C, T/T
    • Product Details
    • Company Profile

    Automatic Armature Powder Coating Equipment / Rotor Powder Coating Oven

    automatic armature powder coating equipment rotor Electrostatic powder coating oven machine


    (1) Main technical data:

    Working piece max O.D:120mm
    Working piece max stack length70mm
    Working piece max shaft length180mm
    Recycle efficiency≥95%
    Production efficiency:1500pcs/hour
    Coating thickness:0.15mm-0.5mm adjustable
    Line speed m/min:0.1-1.5m adjustable
    Screw rod length3500mm
    Feeding speed0~0.5RPM
    Static voltage0~60KN
    Static current≤200μA
    Air source pressure0.5~0.7MPa
    Voltage380V three phase
    High frequency power30KW
    Total dimension4900mm*2500mm*2000
    Weight3000Kgs

    (2) Applications:

    This automatic powder coating machine is widely used in mini rotor insulating coating, such as automotive, motorcycle, power cycle, toy and small electromotor of appliance.


    (3) Machine function and characteristic

    This automatic armature Electrostatic powder coating machine has a wide application, and easy for operation. The coated armature has shiny surface, even thickness, good electricity performance.
    Small motor is transported to fluid bed by screw for coating. Insulation power is equally coated on its surface, and then cured by high frequency heating. This rotor powder coating machine consists of coating, curing, cooling and powder recycling. Except loading and unloading, the other processes are completed automatically.
