    Electric Motor Stator Coil Forming Machine , Copper Wire Middle Shaping Machine

    Ask Lasest Price
    Brand Name : Nide
    Model Number : Z2XW1-600-160
    Certification : CE
    Price : Negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 600 sets per year
    Delivery Time : 60 working days
    • Product Details
    • Company Profile

    Electric Motor Stator Coil Forming Machine , Copper Wire Middle Shaping Machine

    Automatic Horizontal type Electric motor stator coil winding forming machine copper wire middle shaping machine


    (1) Application

    The Horizontal type induction motor stator coil middle forming machine is applied to deep water pump motor and other various type of big dimension stator.


    (2) Main technical data

    Production name:Z2XW1-600/160Horizontal type middle forming machine
    Stator OD:≤300mm
    Stator ID:≤200mm
    Stack Height:≤400mm
    Height of Coil:≤70mm
    Pitch time:≤30s/pc
    Displacement of Cylinder:50L/min
    Power supply:380V 50/60Hz 4Kw
    Weight :about2500Kg
    Dimension:(L)4400×(W)1850×(H)1350mm

    (3) Machine mainfunction and characteristic

    This stator coil shaping machine is suitable for big power stator, long stack length stator(deep-well pump stator) or other big dimension stator. It is horizontal type with a auto slider. Stator can be moved by lifting device. Tooling adopts flexible principles of inner expansion, outer wrapping and edge forming. It is controlled by PLC. The parameter can be set in the HMI.

    Good feedbacks!! intermediate forming machine,intermediate forming machine,forming machine tools,forming machine tools intermediate forming machine


    (4) Picture show

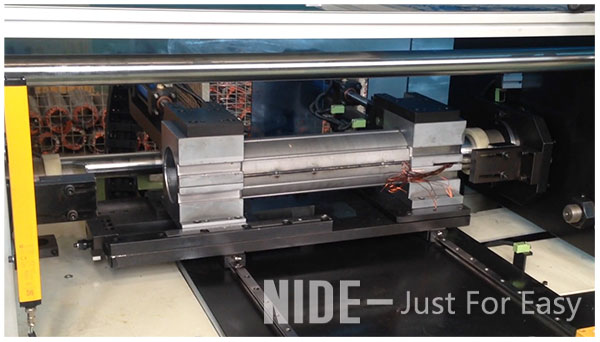

    deep-water-pump-motor-stator-coil-forming-machine91

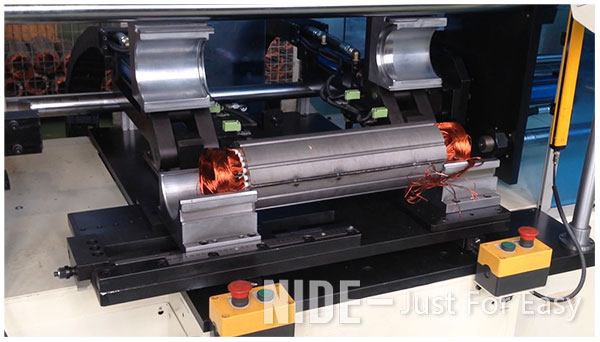

    deep-water-pump-motor-stator-coil-forming-machine92

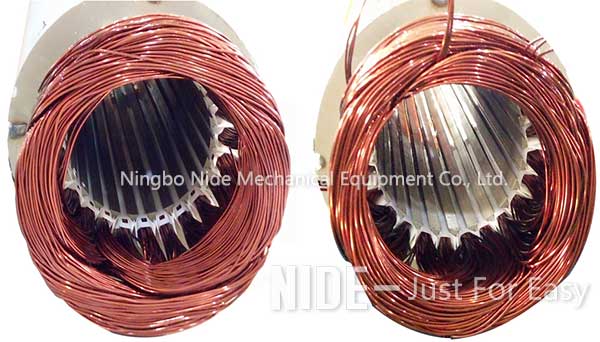

    deep-water-pump-motor-stator-coil-forming-machine93


    Nide is a company devoted in the field of electric motors manufacturing, providing one-stop service for its customers. Nide has three main business divisions. The first division is to provide different kinds of motor manufacturing machinery, including stand along machine, fully-auto complete line for armature and stator production, and the motor assembly line,motor stator winding machine, staor insulation paper inserting mahcine, stator coil inserting machine , ,bldc / brushless motor winding machine,motor armature / rotor winding machine and rotor die casting machine,etc. The second division is to supply the full range of motor components such as commutator, ball bearing, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc. The third division is to provide technical support and consulting, project support and turn-key service for some motor manufacturing.
