    Large Stator Cnc Automatic Coil Winding Machine For Three Phase Motor

    Ask Lasest Price
    Brand Name : Nide
    Model Number : RX3A-550B
    Certification : CE
    Price : Negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 60 sets per year
    Delivery Time : 45 working days
    • Product Details
    • Company Profile

    Large Stator Cnc Automatic Coil Winding Machine For Three Phase Motor

    Automatic Large stator cnc coil winding machine for three phase motor


    (1) Machine function and characteristic

    This stator winding machine is suitable for multi-connected and multi layer winding. It adopts special purpose controller which could set the function of arraying direction, winding start point, slow starting, slow ending, sides stop, auto width, auto reset, ect.

    There are two alternate spindles to facilitate higher output.

    This type of CNC coil winding machine is suitable for stators needs to do winding inserting by manual. The coil will be wound into the winding tooling then operator needs unload the coils mannually.


    (2) Main Technical parameter:


    Production name:RX3A-550 large stator cnc coil winding machine
    Swing diameter:≤550mm
    Effective length of tooling:≤400mm
    Wire head:1pc
    Max stack height:300mm
    Max stator OD:210mm
    Max RPM:500RPM
    Power supply:220V/50/60Hz 2.2Kw
    Air pressure:0.4MPa
    Weight:300Kg
    Dimension:1360mm(L)*1300mm(W)*1280mm(H)

    (3) Application

    This stator coil winding machine is specially designed for multiple wire parallel coil winding such as fan motor, air conditioner motor, alternator, servo motor ,pump motor and three phase motor.

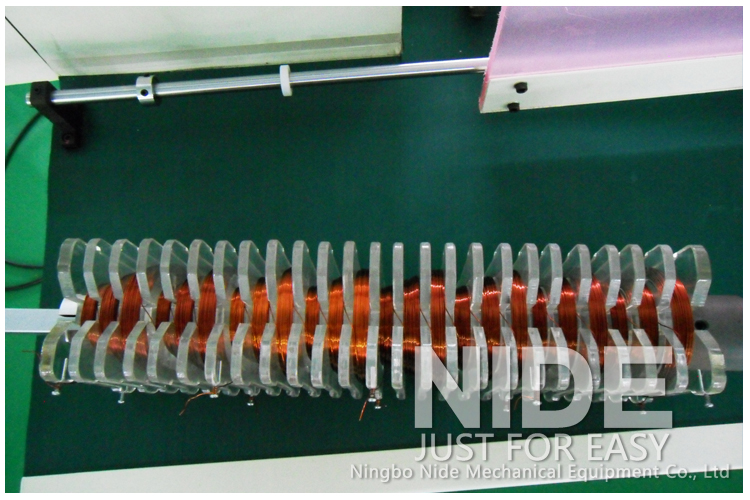

    Stator coil winding machine winding tooling: the coil be wound into the tooling shown as below page.
