    Dynamic Armature Balancing Machine Semi Auto For Motor Rotor Testing

    Ask Lasest Price
    Brand Name : NIDE
    Model Number : ND-SXST-1A3
    Certification : CE
    Price : negotiable
    Supply Ability : 160 sets per year
    Delivery Time : 50 working days
    Payment Terms : L/C, T/T
    • Product Details
    • Company Profile

    Dynamic Armature Balancing Machine Semi Auto For Motor Rotor Testing

    Semi-Auto High Quality armature dynamic balancing machine for motor rotor testing


    (1) Machine function and characteristic


    The automatic armature balancing machine has double two working statins,

    one is for balancing testng , Automatic measure,

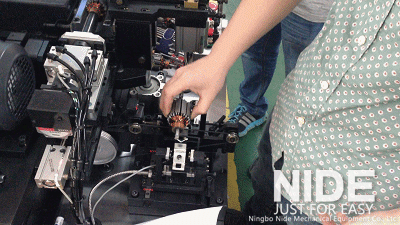

    And the other is for remove the weight. manually load to weight removing position, the armature balancing machine automatic remove the weight, then just manually load to re-measure.


    (2) Application

    The Semi-Auto armature dynamic balancing testing machine is suitable for home appliance, car and power tool motor armature rotor.


    (3)Technical Parameter:

    ItemsDetails
    Production nameSemi-Auto armature balancing testing machine
    TypeTwo-station(single-tool/double-tools)
    Motor Rotor Weightbelow 1.6KG
    Stack height20-70mm
    Rotor diameterΦ20-45mm, 40-70mm
    Balancing speed1600-2100rpm
    Milling methodR-shape or V-shape
    PowerAC380V
    Air supply0.4~0.6Mpa

    Initial unbalance

    In accordance with difference of rotor radius and cutting depth,

    for example, the max single cut on diameter of 32mm≤500mg, the max single cut on diameter of 40mm ≤800mg

    Processing

    cycle time(type Ⅱ)

    12-16s(testing, milling from side to side)

    Starter armature 25s

    One time cutting qualified rate>=90%
    Max removing volume>=90%
    Imbalance repeat measuring precision≤0.5g.mm (±5mg)
    Fixture changing time

    Same armature O.D ≤5 mins

    Different armature O.D ≤ 15 mins

    Residual unbalance

    eccentricity

    Better than the national standard for Grade 6.3

    Volume

    (length x width x height)

    1300 x 1000 x 1300 mm

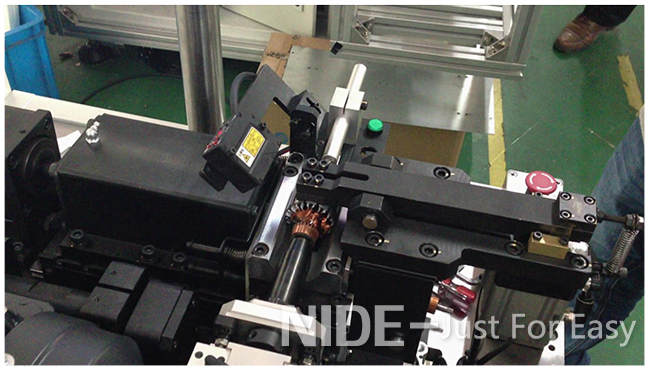

    The armature balancing machine working process


    1.The first step: The armature balancing machine measure automatically,


    2.The second step: The armature balancing machine automatically positions and removes weight.
