Automatic motor Armature coil winding machine

(1) Application

The motor rotor coil winding machine is suitable for home appliance, car and power tool motor aramture.

(2) Machine function and characteristic

This armature winding machine is used for automatically hook type commutator armature winding, it is suitable for winding medium and big wire diameter armature. Automatic feeding, winding, indexing andwire cutting, only load and unload armature from material loader.

Equipped with touch screen and PLC, winding parameter could be set and modified on the screen.

We also have armature winding machine equipped with conveyor, operatoronly need to put several pieces of armature on the conveyor at one time, then machine will finish all the armatures automatically. We could produce machine according to customer's armature accordingly.

(3)Technical Parameter:

(4)Common malfunction of this machine
Sometimes, there is servo alarm displayed on the touchscreen. In this case, there will be error code displayed on the servo driver(at the backside of machine), you could identify the problem according to the error code. The most common malfunction is the encoder cable which connects the servo driver and servo motor is loose, just need remove and reinsert the encoder cable again, problem will be solved.

(5)The operation steps of this machine
Load armature on the shuttle manually, press START button,shuttle will deliver the armature to the winding position, and automatic winding, indexing and wire cutting,after completing, the shuttle will take out the finished armature from winding position, operator unload the finished armature, one cycle is completed.

(6)The rotor winding maching picture show

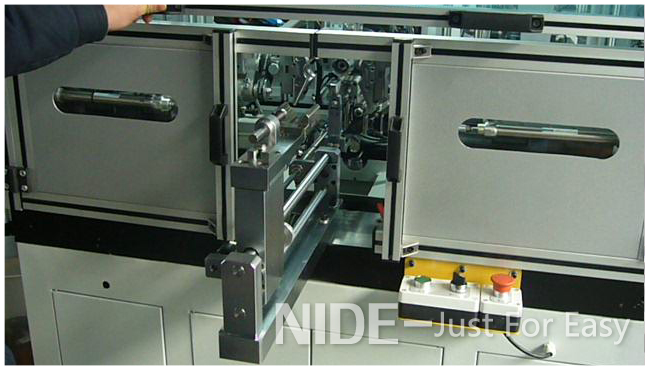

1. the coil winding machine Surface structure

2.The rotor winding machine Internal structure

3.The rotor windingn machine parts display

The armature winding machine video

https://youtu.be/BCR3m_1tSIU
