    Generator motor fan motor Stator Coil final Forming and Shaping Machine for micro motor

    Ask Lasest Price
    Brand Name : NIDE
    Model Number : Z3XL1-150-160H
    Certification : ce
    Price : negotiable
    Supply Ability : 200 sets per year
    Delivery Time : 60 working days
    Payment Terms : L/C, T/T
    • Product Details
    • Company Profile

    Generator motor fan motor Stator Coil final Forming and Shaping Machine for micro motor

    Generator motor washing machine motor Stator Coil final Forming and Shaping Machine


    (1) Machine main function and characteristic
    This stator coil forming machine adopts whole hydraulic system and PCL program.
    With high technology and stable performance, this final forming machine is of highly efficiency and qualified forming.
    The machine tooling design adopts flexible principles of inner expansion.
    The outer wrapping and edge forming form the stator winding. It can ensure appropriate winding outside dimension after lacing.
    The forming process is very easy. Once the start button is pressed, machine will automatically do the forming.
    This machine can adjust the forming stack length by changing washer.
    Both slot paper and wedge should not be damaged or turned over. The stator should not be deformation or stator lamination should not be upward. There is no wire enamel broken.
    This machine adopts safety grating protection system. Operator need to stand when operating.
    Machine adopts two hands simultaneously start button to ensure safety.


    (2) Technical data

    Prouduction name:stator coil final forming machine
    Stack length:20~150mm
    Stator ID:30~110mm
    Stator OD:Max. 160mm
    Displacement of cylinder:20L/min
    Power:380V 50/60HZ 1.5KW
    Machine weight:about 500kg
    Machine dimension:L1080*W850*H2170mm

    (3) Application
    The stator coil final forming machine is suitable for air conditioner motor, washing machine motor, compression motor, fan motor, generator motor and pump motor.

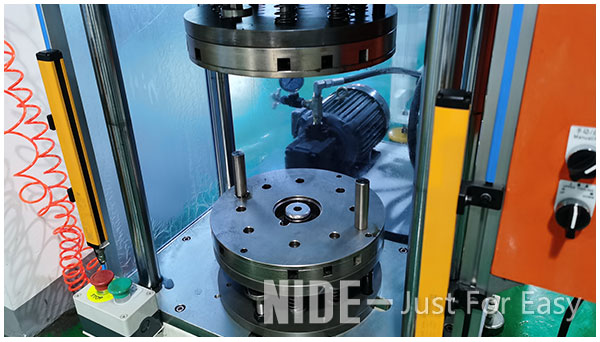

    (4)The stator coil forming machine working show

    stator coil final forming machine

    motor stator coil forming and shaping machine equipment
