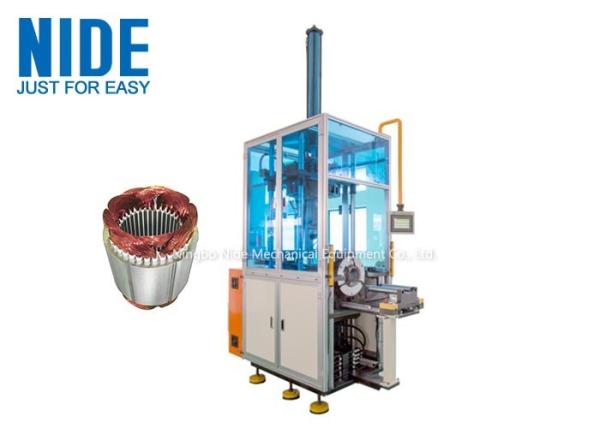

hydraulic system Stator Wire Forming Machine coil winding shaping machine

(1) Application

This hydraulic system Stator Wire Forming Machine coil winding shaping machine is suitable for medium and large electric motor stators, such as air conditioner motor, washing machine motor, compression motor, fan motor, generator motor and pump motor.

(2) Technical data

(3) Machine main function and characteristic

This stator coil forming machine is with an enter and exit station so as to easy doing loading and unloading.

The table can be turned over.

This stator forming machine adopts whole hydraulic system and PCL program.

This wire forming shaping machine can adjust the forming stack length by changing washer.

This coil winding forming and shaping machine has five oil cylinders which work individually to expend inner coil, wrap outer coil and form hang over.

After forming, there is no copper wire enamel broken or wire snap. and coil OD and ID is close to the final forming dimension.

Both slot paper and wedge should not be damaged or turned over. The stator should not be deformation or stator lamination should not be upward. There is no wire enamel broken.

Production capacity ≤14s/set (exclude loading/unloading time)

Primary qualification rate ≥98.5%, after rework, the rate ≥99.5%

This machine adopts safety grating protection system. Operator need to stand when operating.

Machine adopts two hands simultaneously start button to ensure safety.
