    Horizontal Type Coil Forming Machine 380v 50 / 60hz Stator Diameter 0 - 350mm

    Ask Lasest Price
    Brand Name : NIDE
    Model Number : Z3XW2-400/350
    Certification : CE
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 500 set per year
    Delivery Time : 60 working days
    • Product Details
    • Company Profile

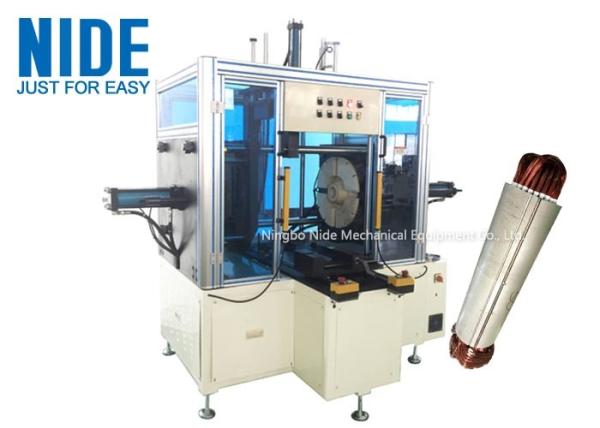

    Horizontal Type Coil Forming Machine 380v 50 / 60hz Stator Diameter 0 - 350mm

    Horizontal Type Stator Winding Final Forming Machine


    Introduction:

    This stator forming machine is designed with a horizontal type to better load and unload stators, especially for the big and heavy stators.



    (1) Machine mainfunction and characteristic

    This stator coil forming machine is horizontal type so as to easily load and unload stator. It is driven by hydraulic system, and controlled by PLC. It expands the inner of the over-hang during forming process; it effectively ensures the over-hang dimension and the appearance.

    During tooling change, just change the block, inner expansion core and upper stator fixing sleeve. The core adopts quick release structure. For the block and upper stator fixing sleeve, it can be quickly changed by loosening the related screws. When change different stack stator, loosen related screws, then drive the gear and rack by handle. After adjustment, tighten the screws.


    (2) Main technical data

    Stator OD≤350mm
    Stator ID80-230mm
    Stack Height100mm-400mm
    Displacement of Cylinder30L/min
    Power supply380V 50/60Hz
    Weight≈1800Kg
    Dimension(L)2550×(W)1930×(H)2200mm

    (3) Application

    The stator coil forming machine is applied to deep water pump motor and other various type of overlength motor stator.
