    Stator Insulation Paper Cutting Machine 1100 * 850 * 1200mm For Inserting Wedge

    Ask Lasest Price
    Brand Name : NIDE
    Model Number : CD1-300A
    Certification : None
    Price : Negotiable
    Payment Terms : L/C, T/T
    Delivery Time : 35 working days
    • Product Details
    • Company Profile

    Stator Insulation Paper Cutting Machine 1100 * 850 * 1200mm For Inserting Wedge

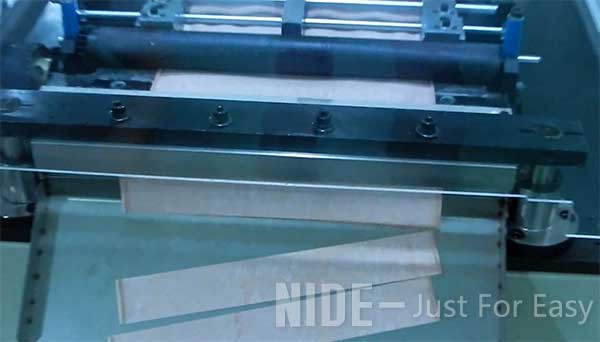

    Stator insulation paper forming cutting machine for inserting wedge to STATOR slots


    This paper shaping and cutting machine is used to perpare insulation paper for the next process. Machine will cut insulation paper as per pre-set value. Once start button is press, machine will do the forming and cutting process automatically.


    (1) Technical parameter:

    Feeding length: 10~1000mm

    Cutting width: ≤200mm

    Cutting thickness:0.1-0.35mm

    Width of edge folded:2-4 or 4-7mm

    Power supply: 220V/ 50/60Hz 0.5KW

    Weight:180Kg

    Dimension:1100*850*1200mm


    (2) Application:

    This machine is suitable for manual motor manufacturer and manufacurer who has varies of motor models.


    (3) Machine function and characteristic:

    Paper feeding is driven by stepping motor, edge folding, feeding length, width is adjustable, and fixed output can be set; suitable for manual motor manufacturer and manufacturer who has varies motor models(Heating function can be customized).(1) Technical parameter:

    Feeding length: 10~1000mm

    Cutting width: ≤200mm

    Cutting thickness:0.1-0.35mm

    Width of edge folded:2-4 or 4-7mm

    Power supply: 220V/ 50/60Hz 0.5KW

    Weight:180Kg

    Dimension:1100*850*1200mm


    (4) Competitive advantages:
    Variety of application, easy operation.
    We directly supply our machine to many countries, like USA, France, Turkey, Iran, India, Brazil, Argentina, Mexico etc.
    We could customize machine for our customer.

    Besides paper inserting machine, we also supply different types of electrical insulation materials for stator or armatures, such as insulation paper and insulation wedge with different class degree. DMD Class B/F, DM Class B/F, Polyester film Class E, Red Vulcanized Fiber Class A, NH& NHN, etc
    electrical insulation meterial motor winding insulation paper
