    Middle Motor Production Line Commutator Pressing For Motor Armature 20 - 60mm

    Automatic Rotor commutator pressing machine for motor armature


    1) Application

    This automatic rotor commutator pressing machine is suitable for home appliance, car and power tooling motor armature.


    (2)Technical parameter:

    Porduction name:ND-LYH-104 automatic commutator pressing machine
    Armature O.D:20-60mm
    Shaft O.D:3-15mm
    Shaft length:32-250mm
    Armature slot number:8-24 slots
    Commutator O.D:8-40mm
    Speed amplitude modulation:0-670Hz
    Air source:6-6Kg/cm2
    Total power:1.0KW
    Power source:AC220V,50/60Hz
    Weight:About 400Kg
    Dimension:910*880*1300mm

    (3) Machine function and characteristic

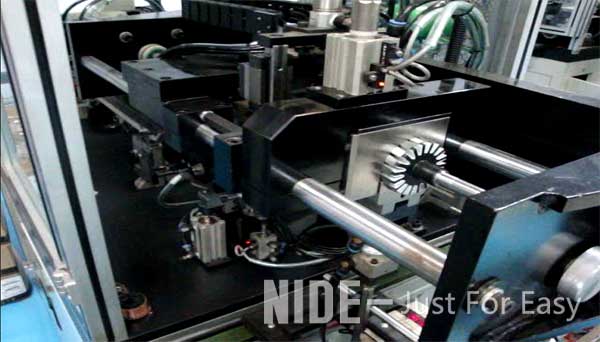

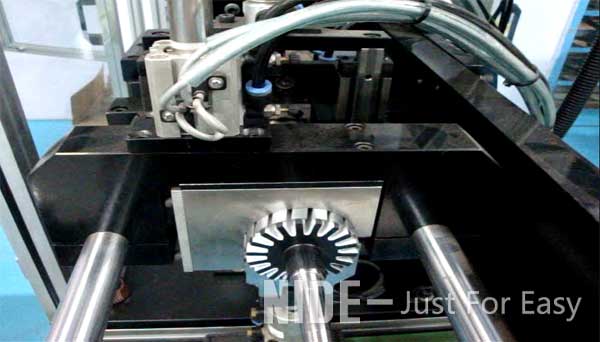

    Auto commutator pressing machine is used for pressing commutator onto the shaft. The commutator pressing Machine can do automatic feeding commutator and armature core.

    hot sale Commutator pressing machine,Commutator pressing machine,auto comutator inserting machine,commutator assembly machine


    (4)Competitive advantages

    Variety of application, easy operation.
    We directly supply our machines to many countries, like USA, France, Turkey, Iran, India, Brazil, Argentina, Mexico etc.
    We could customize machine for our customer.
