    Three Phase Motor Rotor Armature Winding Machine Stack Length 20 - 60mm

    Automatic armature three-phase motor rotor coil winding machine

    This armature winding machine is used for automatically hook type commutator armature winding, it is suitable for winding medium and big wire diameter armature. Automatic feeding, winding,indexing and wire cutting, only load and unload armature from material loader. Equipped with touch screen and PLC, winding parameter could be set and modified on the screen. We also have armature winding machine equipped with conveyor, operator only need to put several pieces of armature on the conveyor at one time, then machine will finish all the armatures automatically. Below parameter is our standard machine, we could produce machine according to customer's armature accordingly.


    (1) Application

    The motor armture winding machine is suitable for home appliance, car and power tool motor aramture.



    (2) Technical Parameter:


    ItemSpecification
    Armature O.D range:20~60mm
    Armature slot:Even slot
    Commutator diameter:12~40mm
    Wire diameter:

    Magnetic hysteresis method: 0.16~0.55mm/

    Electric control method: 0.30~0.85mm

    Stack length:20~60mm
    Shaft diameter:3~17mm
    Shaft length:Less than 300mm
    Turn number:0~9999
    Winding speed:0~3000rpm
    Winding motor power:1.5KW* 2
    Angle detecting speed:0~3000rpm
    Angle detecting motor power:0.75KW*1
    Air supply pressure:4~6Kg/cm2
    The machine total power:4.0KW
    Voltage:Three phase AC380V50/60Hz
    Dimension:2000(length)X1300(width)X1800(height)mm
    Weight:1200Kg

    (3) Production efficiency of this machine
    Around 1000pcs/8 hours,it is only a rough idea, depends on the armature slots number and turn number.


    (4) The operation steps of this machine

    Load armature on the shuttle manually, press START button,shuttle will deliver the armature to the winding position, and automatic winding, indexing and wire cutting,after completing, the shuttle will take out the finished armature from winding position, operator unload the finished armature, one cycle is completed.

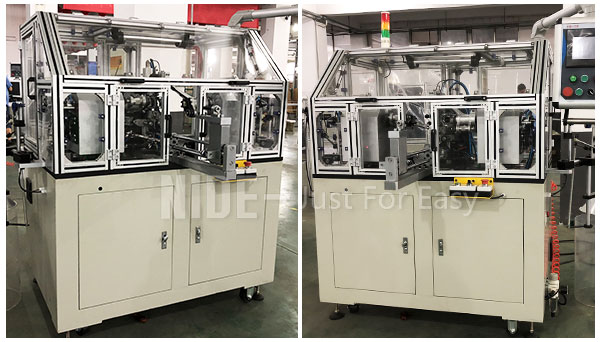

    (5) The rotor winding maching picture show

    ND-LAW-5B2armarture-winding-machine91


    ND-LAW-5B2armarture-winding-machine92
