    Shaft Od 3 - 17mm Paper Inserting Machine For Auto Rotor Armature Insulation

    Ask Lasest Price
    Brand Name : Nide
    Model Number : ND-LSI-1B
    Certification : None
    Price : Negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 100set
    Delivery Time : 45 working days
    • Product Details
    • Company Profile

    Shaft Od 3 - 17mm Paper Inserting Machine For Auto Rotor Armature Insulation

    Auto rotor armature insulation paper insertion machine


    This armature paper inserting machine is used to insert the insulation paper into armature slot before armature doing coil winding. Paper maternal and dimension can be as per customer's requirement. We also supply customzied service.


    (1) Machine function and characteristic

    It is of high reliability to be under the control of PLC.

    The electromechanical linkage device and the faults detection system is mounted.

    Pneumatic work piece clamping. The English operation system is available.

    it is easy to change the tooling.

    the machine body is light and elaborating.

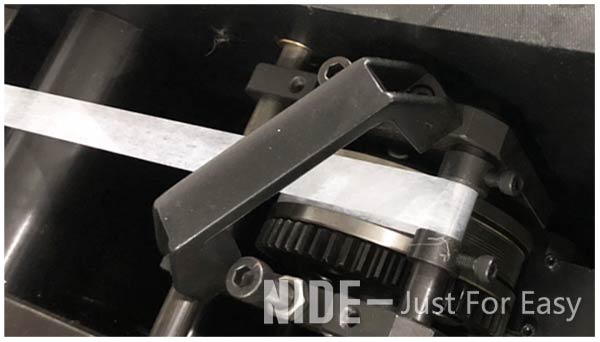

    If only the rotor to be processed is placed on the feeding track, the machine will finish the work such as the rotor lifting, clamping, shaping of the insulating paper, cutting and inserting automatically.


    (2) Main technical data :

    ItemSpecification
    Armature O.D20~60mm
    Shaft lengthMax 250mm
    Shaft O.D3~17mm
    Commutator O.D12~40mm
    Slot number8~24 slots
    Thickness of insulation paper0.1mm~0.5mm
    Length of insulation paper10~70mm
    Type of insulation paper materialDMD, DM, Polyester film
    Efficiency0.5S~0.8 S/slot
    Air source4~6Kg/cm2
    Rated power1500W
    VoltageAC220V,50/60Hz
    WeightAbout 400Kg
    Dimension910mm x 880mm x 1300mm


    (3) Application
    This is suitable for home appliance, car motor, and power tooling motor armature.


    (4)Competitive advantages

    This machine is easy for operation. It's helpful for customer to reduce labor cost and improve production efficiency. And this machine can be equipped with an automatic feeding device to achieve a fully automatic operation. PLC and touch screen control.



    Besides paper inserting machine, We also supply different types of electrical insulation materials for stator or armatures, such as insulation paper and insulation wedge with different class degree. DMD Class B/F, DM Class B/F, Polyester film Class E, Red Vulcanized Fiber Class A, NH& NHN, etc
