Automatic Positioning Weight Added Rotor Balancing Machine for Motor Rotors

This type of armature balancing machine can test the unbalancing weight and it do the balancing by weight adding process.

(1) Machine function and characteristic
This machine automatically measures the unbalancing amount of the armature, automatically stops the armature at the unbalancing position
No need to mark on the armature (such as reflective sheet, black mark an so on)
Imbalance point positioning automatically
Low operation skill requirement to staff
Reduce the complexity of the machine operation
PLC control
Operator needs to stick the balancing mud onto the unbalancing position manually

(2) Main technical data

(3) Applications:
The machine is widely used in the motor field, such as wiper motor, vacuum cleaner motor, mixer motor, window lifter motor, condenser motor, power tool motor, DC motor, etc.
the working station. Armature should be put on the belt. Then it will do the balancing,and the unbalancing value will be displayed in the touch screen.

(4) Operating procedures:

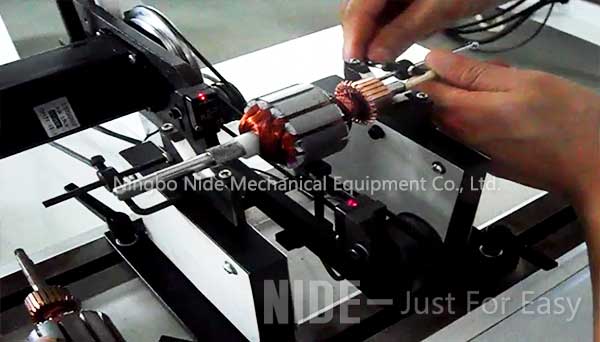

1.put the motor rotor on the belt line of the armature rotor balancing testing machine

2.The motor armature rotor balancing testing machine is working :Rotating rotor

3Finished test.
