    500 X 550 X 1500mm Paper Inserting Machine For Balance Electric Vehicle Motor Insulation

    Ask Lasest Price
    Brand Name : Nide
    Model Number : DCCZ1-200-D
    Certification : None
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 100 Sets/Year
    Delivery Time : 45 working days
    • Product Details
    • Company Profile

    500 X 550 X 1500mm Paper Inserting Machine For Balance Electric Vehicle Motor Insulation

    Balance Electric Vehicle Motor Insulation Paper Inserting Machine


    (1) Application :
    The stator slot insulation paper inserting machine is suitable for balance Scooter motor , balance Electric Vehicle motor , balance car motor. The paper inserter is equipped with touch screen , and the paper length and paper feeding time can be set in the touch screen.



    (2) Machine function and characteristic :
    The balance car motor stator insulation paper inserting machine adopts servo working system which dramatically improve the paper inserting efficiency. The parameter of stator slots number, feeding speed, indexing speed and indexing direction can be set in the HMI.
    One-time pass rate at 99%,rework pass rate at 100%.



    (3) Technical parameter :

    Product nameBalance car motor stator paper inserter
    Stator OD80~200mm
    Stack length range18~35mm
    Insulation paper thickness0.188~0.35mm
    Power supply220V 50/60HZ 1.0KW
    working stationone
    Weight350KG
    Dimension500x550x1500mm


    (4) Picture display :

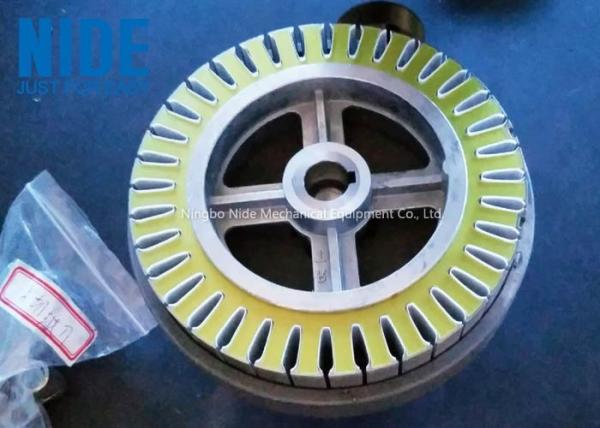

    The Balance car motor stator insulation paper inserting machine

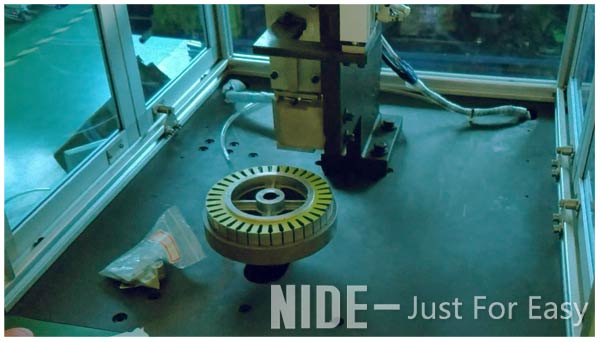

    The Balance scooter motor stator insulation paper inserting machine


    Besides paper inserting machine, We also supply different types of electrical insulation materials for stator or armatures, such as insulation paper and insulation wedge with different class degree. DMD Class B/F, DM Class B/F, Polyester film Class E, Red Vulcanized Fiber Class A, NH& NHN, etc

    insulation-paper-material-for-motor-winding-manufacturing


    electrical insulation paper material


    About Motor component and accessories


    NIDE can supply the full range of electric motor components such as commutator, ball bearing, thermal protector, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.


    electric motor components
