    350 Kg Servo Precision Stator Coil Winding Machine For Bladeless Fan Motors

    Ask Lasest Price
    Brand Name : NIDE
    Model Number : ND-RX50B
    Certification : NONE
    Price : negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 160 sets per year
    Delivery Time : 45 working days
    • Product Details
    • Company Profile

    350 Kg Servo Precision Stator Coil Winding Machine For Bladeless Fan Motors

    Bladeless Fan Motors Servo Precision Stator Coil Winding Machine


    Motor Winding machine application:

    The motor inner stator winding machine is suitable for various types of DC brushless motors such as servo motors, electric toothbrush motors , brushless motors, stepping motors, fan motors, and bladeless fan motors.



    Motor Winding equipment introduction:

    The brushless motor stator winding machine is suitable for the four-slot brushless motor stator coil winding, and adopts the double-station horizontal structure design . The brushless stator can automatically rotate the station after the winding of the two slots , and each stator winding requires only two processes ; the motor stator winding machine can control and process the winding process at the same time of high-speed winding, and can perform two-axis synchronous neatly arranged winding, and can achieve special processes with high winding requirements; the winding machine adopts servo precision. Positioning, automatic winding head, tail, automatic winding, automatic cable, automatic indexing, automatic clipping, to achieve the best cost performance of the equipment.



    Specification:

    Product name :Double stations Horizontal BLDC staor needle winding amchine
    Wire dia.:0.15-0.7mm(can be customized)
    Winding speed:50-800 r/min
    Winding method:stator internal needle winding
    Stack- length:5-60mm
    Stator ID:10-50mm
    Stator OD:30-80mm
    Aire pressure:0.5MPa~0.7 MPa
    Power:380V/50HZ, three phase four wires
    Total power:8.5 KW
    Dimension:700*900*1650mm
    Wegit :≈ 350 Kg

    BLDC winding machine Picture display :

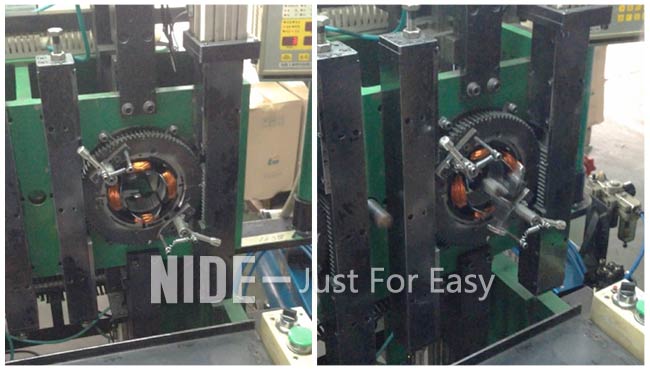

    The BLDC motor stator coil winding machine winding process 1

    motor winding machine coil winder

    The BLDC motor stator coil winding machine winding process 2

    BLDC needle winding technology machine
