    Air Conditioner Motor Testing Equipment Computer Control With Double Stations

    Ask Lasest Price
    Brand Name : Nide
    Model Number : ND-STA-856A1
    Certification : CE
    Price : negotiable
    Supply Ability : 80 sets per year
    Delivery Time : 50 working days
    Payment Terms : L/C, T/T
    • Product Details
    • Company Profile

    Air Conditioner Motor Testing Equipment Computer Control With Double Stations

    Double Stations Air Conditioner Motor Stator Testing Machine / Computer Control


    1. Machine main function and characteristic

    All the test items are done automatically at one time

    Two work station, high efficient.

    Production capacity ≤8s/set (exclude loading/unloading time)

    Testing item could be select as per requirement, approval criteria could be automatic generated by sampling.

    Ambient temperature compensation automatically

    Alarm for NG part.

    Testing data could be save, transfer and printed.


    2. Technical data


    (1) Dielectric strength test(Hi-pot)

    Testing range:500~2800V AC 50Hz 1~60s
    Voltage precision:+/-2.5%
    Current range:0.1~10mA
    Current precision:+/-1%
    Alarm setting:settable within the range

    (2) Insulation resistance test

    Testing range:DC500V
    Resistance range:10MΩ~500MΩ
    Precision:±3%
    Alarm setting:settable within the range

    (3) Cold resistance test (ambient temperature capture by machine automatically)

    Testing range:test A. B. C. resistance individually and invert to resistance value under standard temperature fast.
    Standard temperature :
    is 20℃ (User could set it by them)
    Testing range:0~1Ω~100Ω (according to sampling motor)
    Testing precision:+/-0.5%
    Threshold value:settable within the range

    (4) Surge test

    Surge voltage peak value:500~2800v main phase, aux phase, main/aux phase breaking individually
    Voltage precision of surge peak value:+/-3%
    Surge rising time:1.2μs
    Identification wayΔs/s Δf/f
    Threshold setting:settable within 1~100

    3. Application

    This testing panel is suitable for air conditioner motor, washing machine motor, servo motor, stepping motor and other ironclad stator.

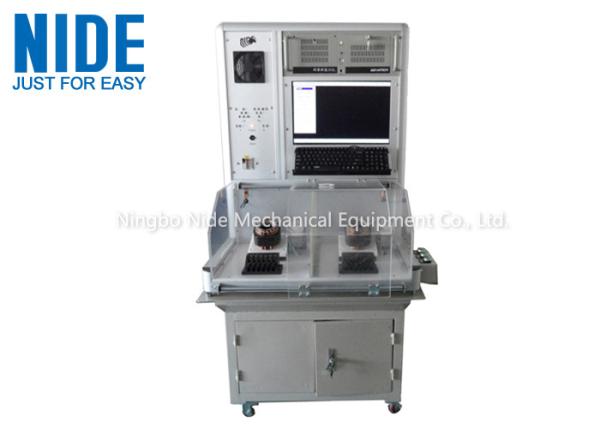

    4.The stator testing machine piture
