    Two Working Stations Needle Winding Machine For Bldc Stator Coil Winder

    Ask Lasest Price
    Brand Name : Nide
    Model Number : RXN2-100/150A
    Certification : None
    Price : Negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 100 sets per year
    Delivery Time : 60 working days
    • Product Details
    • Company Profile

    Two Working Stations Needle Winding Machine For Bldc Stator Coil Winder

    Automatic needle winding machine for BLDC stator coil winder , two working stations


    Machine function and characteristic:
    This needle winder is suitable for winding BLDC stator. It equips with servo system. It can automatically intert wire end, winding, arraying, indexing, cutting, demolding. This needle winder is designed with two working station. Machine movement is pre-set in the touch screen. All the winding data can be shown on the touch screen during machine running. During running, machine will alarm if something goes wrong.


    Operation step
    1. Power on the machine
    2. Thread the wire
    3. Put stator to the working station table
    4. Adjust the tooling according to different model stator
    5. Set the stator diameter in the touch screen then select the pre-set data.
    6. Press "start" button.
    7. Machine will automatically do winding.
    8. Take out the stator


    Technical parameter of BLDC motor needle winding machine

    Stator O.D

    ≤250mm

    Statck ID:

    ≥50mm

    Wire diameter

    0.3~1.4mm

    Stator stack length

    10~200mm

    Working station

    two working station

    Control method

    PLC

    Date set

    in touch screen

    Light curtain

    available

    Air pressure

    5~7Kg/cm2

    Total power

    2KW

    Voltage

    220V 50/60HZ

    Weight

    750KG

    Dimension

    1400x1000x2000mm


    Competitive advantages

    Variety of application, easy operation.

    We have Overseas Service Center.

    It is suitable for rotor or stator with different model number and dimension.

    The operation and tooling change process is easy.

    We could customize machine for our customer as per their requirement.

    We directly supply our machines to many countries, like USA, France, Turkey, Iran, India, Brazil, Argentina, Mexico etc.
    This machine is controlled by PLC. All the parameter could be set on the touch screen,


    Information needed for BLDC Stator Coil Winder inquiry
    It will be better if customer could send us detailed drawing including below information.
    1. Stator drawing
    2. Stator winding drawing
    3. Winding distribution drawing
    4. Other technical requirement
    If possible, it will be better if customer can send us samples.

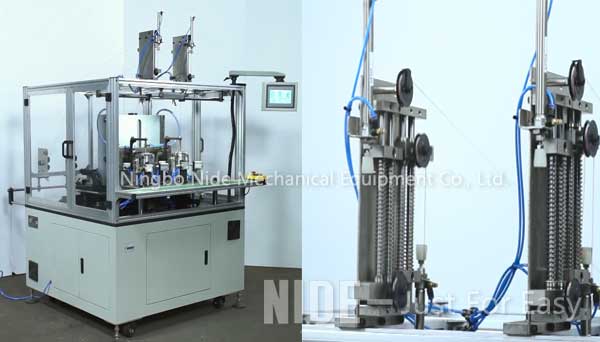

    The automatic needle winding machine for stator coil winder:
