    Motor Stator Coil Insertion Machine Semi - Automatic For Washing Machine

    Ask Lasest Price
    Brand Name : Nide
    Model Number : QX1-150-160B
    Certification : None
    Price : Negotiable
    Payment Terms : T/T, L/C
    Delivery Time : 35 working days
    Supply Ability : 400 sets per year
    • Product Details
    • Company Profile

    Motor Stator Coil Insertion Machine Semi - Automatic For Washing Machine

    Semi-automatic Motor Stator Coil Winding Embedding Inserting Machine for Washing Machine Motor


    (1)The stator coil insertion Application

    The stator winding inserting machine mainly apply to air conditioner motor,washing machine motor,compression motor,fan motor,generator motor,pump motor,single and three phase induction motor,etc.


    (2) The stator coil inserting Machine main function and characteristic

    With servo driven system,the stator coil winding inserting machine is used for inserting coil and wedge into the stator slot simultaneously , the wedge feeding is to be done by stepping motor,different parameter could be set in human-machine interface.


    The speed and feeding mode is acquirable according to different slot filling rate and different kind or wire.


    (3) The stator coil inserting Machine Technical paramenter

    Product name:semi-automatic stator coil and wedge inserting machine
    Stator stack height:10-150mm
    Stator ID:30-110mm
    Stator OD:0-160mm
    Tooling stroke:0-60mm
    Wire type:Alumin / Copper
    Slot NO.:8-48 slots
    Power supply:380V 50/60HZ 3KW
    Weight:about 600KG
    Dimension:(L)1850*(W)650*(H)1700mm

    (4) The stator coil inserting Machine Picture show

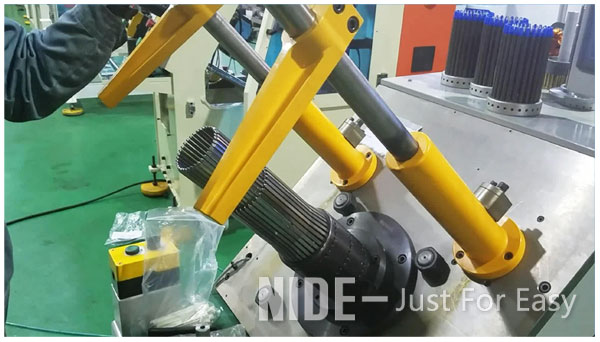

    1.The stator coil inserting machine

    2.The coil inserting machine tooling mould display

    3.The motor stator embedded in the coil
