    Sinlge Stator Coil Inserting Machine Horizontal Type For Deep Water Pump Motor

    Ask Lasest Price
    Brand Name : Nide
    Model Number : QWB1-600/150A
    Certification : None
    Price : Negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 100set per year
    Delivery Time : 60 working days
    • Product Details
    • Company Profile

    Sinlge Stator Coil Inserting Machine Horizontal Type For Deep Water Pump Motor

    Horizontal Type Semi-Auto Deep Water Pump Motor Sinlge Stator Coil Insereting Machine


    (1) Main technicaldata

    Stator Stack length300~600mm
    Stator ODMax 300mm
    Stator ID50~150mm
    Wire diameter0.18~1.2mm
    Voltage380V/50/60HZ
    Power3.5Kw
    Weightabout 1200kg
    DimensionL2100*W2000*1600mm

    (2) Application
    It is applied to deep water pump motor and other various type of overlength motor stator.


    (3) Machine mainfunction and characteristic
    This is horizontal type semi-auto winding inserting machine. It adopts Mitsubishi AC servo motor and pneumatic element system drive. It si controlled by PLC and equipped with X and Y spindle auto feeding device. It can automatically insert coil and wedge into stator slot simultaneously.


    (4) Competitive advantages

    Variety of application, easy operation.

    We have Overseas Service Center.

    Machine is controlled by PLC. All the parameter can be set in the touch screen.

    It is suitable for stators with different model number and dimension.

    The operation and tooling change process is easy.

    We could customize machine for our customer as per their requirement.

    We directly supply our machines to many countries, like USA, France, Turkey, Iran, India, Brazil, Argentina, Mexico etc.


    (5) Information needed for stator winding inserting machine inquiry
    It will be better if customer could send us detailed drawing including below information.
    1. Stator lamination drawing
    2. Stator stack drawing
    3. Wire connection drawing
    4. Stator application
    5 Required productivity
    6 Other technical requirement

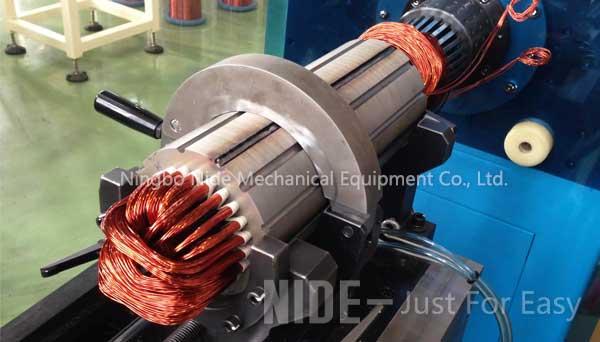

    The Deep Water Pump Stator Coil Insereting :

    Quality Sinlge Stator Coil Inserting Machine Horizontal Type For Deep Water Pump Motor for sale
