    380V Automatic electric motor stator coil winding and insering machine


    1. The main Features and Functions

    The motor stator coil winding and inserting machine has one automatic motor coil winding stations and one stator coil inserting station. During winding, the motor stator copper wire will be auto wound to the tooling, so as to avoid the wire damage and snap caused by wire cross and disorder during manual wire transfer. The coil winding and inserting station is controlled by the dual-power servo motor, and the parameters such as winding, pushing the line, pushing the height of the paper, and changing the product stack thickness can be set on the touch screen. With automated coil winding and insertion wokring at the same time, the stator coil winding and inserting machine will be save labor cost, high efficiency, and can fulfill the 2-pole, 4-pole and 6-pole three-phase motor coil winding.

    The coil winding and inserting machine uses the German Beckhoff CNC system as the control center; the Huichuan servo motor is the actuator; the Autonics sensor is the signal acquisition component. The data display and input adopt a touch monitor.

    The product is mature in technology, advanced in technology, reliable in quality, and convenient to use and maintain.


    2. Application

    This motor stator coil winding and inserting machine is suitable for miniature induction motors , air conditioner motors, washing machine motors, compressor motors, fan motors, generator motors, and pump motors, etc.


    3. Technical parameters

    Product name :automatic motor stator coil winding and inserting machine
    Stator OD:≤φ150mm
    Stator ID:40-110mm
    Stack Height:30-120mm
    Appropriate Wire:φ0.2-φ1.2mm
    Motor Winding stations:1
    Stator Coil inserting stations:1
    Winding inserting mode:chained /same core
    Power supply:380V 50/60Hz
    Air pressure:0.6-0.8 MPa
    Watt :5Kw
    Weight :≈1800Kg
    Dimension:(L)2200×(W)1200×(H)2200mm

    4.The picture display

    1. The automatic motor winding and inserting machine winding stations

    motor stator coil winding machine

    2. The automatic motor winding and inserting machine coil insertion stations


    coil insertion,motor winding insertion machine

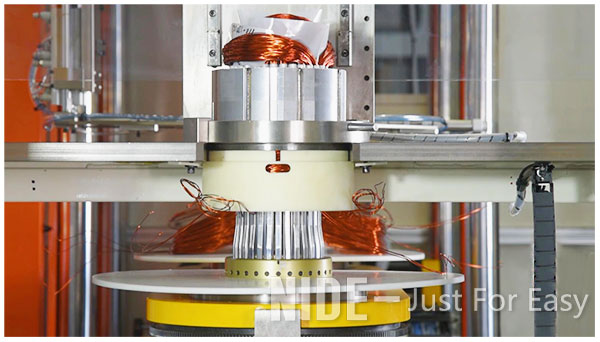

    3. The coil winding and insertion machine coil Inserting abrasive display

    stator coil winding and inserting machine


    The motor stator coil winding and inserting combined mahcine working youtube video
