    Customized Automatic Motor Winding Machine Stator Winding Machine For Grinder And Mixer Stator

    Ask Lasest Price
    Brand Name : Nide
    Model Number : RXL4-100C
    Certification : None
    Price : Negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 100set
    Delivery Time : 50 working days
    • Product Details
    • Company Profile

    Customized Automatic Motor Winding Machine Stator Winding Machine For Grinder And Mixer Stator

    Automatic motor winding machine stator coil winder for grinder and mixer stator


    (1) Machine main function and characteristic


    This automatic motor stator coil winding machine has four winding heads with 8 coil winding working stations.Hight efficiency is the biggest advantage.The coil winding machine can put coil into transfer tool automatically,especially suitable for high fill factor,small slot opening stator;auto skip,auto cutting,auto indexing could be completed at one time,parameter can be set in HMI,winding tension is adjustable,

    has continuous/discontinuous winding method,can meet the 2poles,4poles,6poles coil winding.


    Mature and advanced technology,reliable quality,easy operation and maintenece.


    The series of machine including single coil winding head with 2 stations , two coil winding heads with 4 stations , four winding heads with 8 stations , and six winding heads with 12 stations.Customers can communicate with us to negotiate technical solutions.


    (2)Application


    The automatic motor stator winding machine is suitable for grinder , mixer ,air conditoner motor,washing machine motor,compressor motor,fan motor,pump motor etc.


    (3)Technical paramenter

    Product name:Fully automatic grinder and mixer motor stator coil winding machine
    Max stator OD:130mm
    Max stator stack height:65mm
    Wire diameter:0.19~1.2mm
    Flyer diameter:220mm
    Max RPM:2500RPM
    Operation station:8
    Winding head:4
    Air source:≥0.5MPa
    Power supply:380V 50/60HZ 15KW
    Weight:about 4500KG
    Dimension:(L)2400*(W)1900*(H)2250mm

    (4)Picture show


    1.The automaitc 8 stations motor stator coil winding machine picture show


    motor coil winding machine

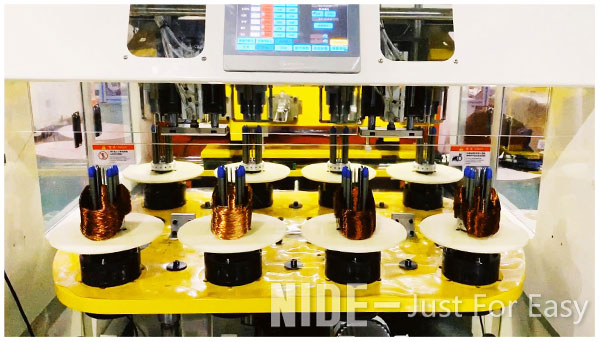

    2.The automaitc 8 stations motor stator coil winding machine after 4 working stations winding completed


    grinder motor and mixer motor stator coil winding machine

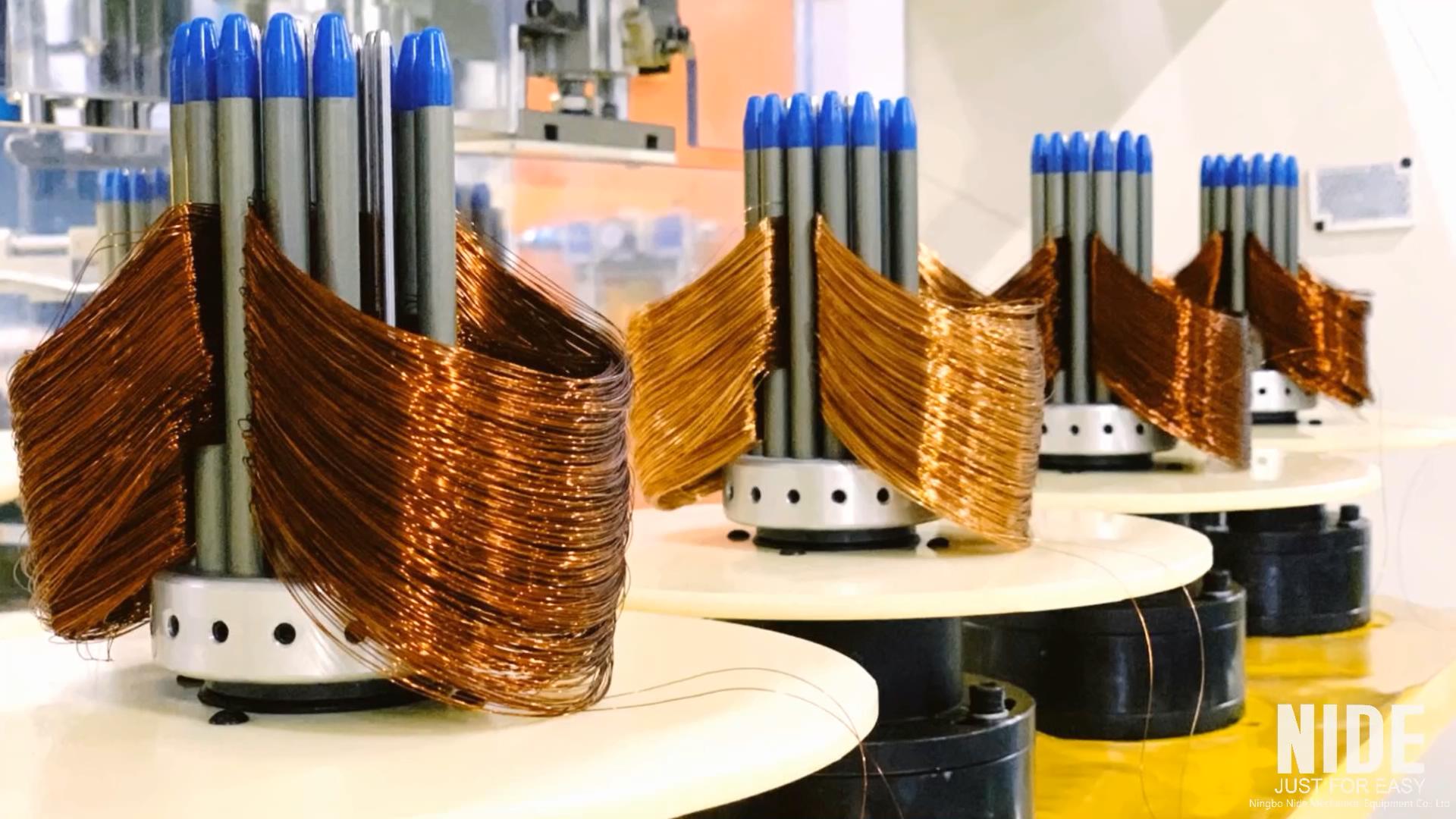

    3.The motor stator coils show


    motor coil winding machine stator winder


    (5)The automatic 8 stations motor stator coil winding machine working youtube video


    https://youtu.be/GB2xykQSPjE
