    Automatic Electric Motor Winding Machine / ​2 Poles Stator Coil Winding Machine

    Ask Lasest Price
    Brand Name : Nide
    Model Number : ND-SW-2A
    Certification : None
    Price : Negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 120 sets per year
    Delivery Time : 55 days
    • Product Details
    • Company Profile

    Automatic Electric Motor Winding Machine / ​2 Poles Stator Coil Winding Machine

    ​2 poles stator coil winding machine automatic electric motor winding machine for universal motor


    (1) Main technical data:

    Product name:Automatic 2 poles electric motor stator coil winding machine
    Stator O.D:50~130mm
    Stator I.D:20~60mm
    Wire diameter:0.5~1.3mm
    Stator stack length:10~45mmm(standard);30~70mm(lengthen)
    Slot number:2 poles
    Working stations:2
    Air pressure:0.4~0.7MPa
    Lubrication mode:Continuous lubrication oiling machine
    Voltage:AC380V,50/60Hz,4.5KW
    Weight:1200Kgs
    Dimension:1500*2100*1650mm

    (2)Application:

    This motor stator automatic coil winding machine is suitable for two poles stator coil winding,such as universal motor,series motor.



    (3) Machine Function and characteristic:

    1. The motor winding machine has two working stations.

    2.The maximum winding speed is up to 450 rpm (according to the wire diameter).

    3.Cast iron or steel frame can absorb the shock. Accuracy is stable.

    4. All the actions are fully automatic (including loading and unloading). The winding could be more stable and efficient.

    5. Fixtures are in cycle operation automatically. It is benefit for the on-line operation.

    6. The cutting part structure is in compact. Wire clamping and cutting is finished at the same time.

    7. Travel and swing angle is adjusted within 150-220 mm (mechanical adjustment) .It could adapt to different requirement of different stator models.

    8. Easily to change the fixture for different types of stators.

    9.Permanent magnet tensioning device enables the tension adjustment.


    (4)The automatic motor stator winding machine picture show


    1.Two coil winding stations of the automatic motor stator winding machine

    motor winding machine stator coil winder

    2.Left and right sides protective panel of the motor winding machine display

    universal motor coil winding machine

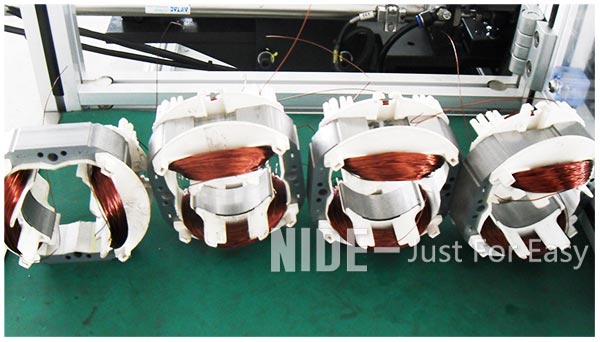

    3.2-pole motor stator after automatic coil winding

    automatic motor winding macine ,stator winder


    (5)The automatic motor winding machine youtube video

    https://youtu.be/A7oZeQj1qq0
