    Fully Automatic Electric Motor Stator Lamination Core Stamping Manufacturing Machine

    Ask Lasest Price
    Brand Name : NIDE
    Model Number : ND-JRJ
    Certification : CE
    Price : negotibale
    Supply Ability : 150 sets per year
    Delivery Time : 40 working days
    Payment Terms : L/C, T/T
    • Product Details
    • Company Profile

    Fully Automatic Electric Motor Stator Lamination Core Stamping Manufacturing Machine

    Fully automatic electric motor stator lamination core stamping manufacturing machine


    This motor stator lamination slinky winding machine is used to for spiral winding of die-stamped strip of sheet iron. It is consisted of frame, slinky tooling, transmission mechanism and electric control system. The machine frame is made out of aluminum profiles with solid steel supporting plate, on which main machine units are disposed.


    Main data of the slinky winding machine


    Power source:AC220V/50Hz
    Control power:DC24V/100W
    Servo motor:AC220V/1.5KW
    Slinky speed:0-200rpm/min
    Air source:0.6Mpa~0.8Mpa

    With a punch needle structure, the slinky tooling will drive the rotation mechanism. During running, the pinch roller will form the outside dimension. Machine is of high efficiency and it is easy to control the dimension. The slinky tooling is under several processing treatment to ensure its duration and accuracy.


    During operation, manually load the material into the slinky tooling. Then set the related parameter and press start button. Slinky winding machine will do all the process. After that, manually unload the material of the slinky windng machine.


    die-stamped strip of sheet iron is suitable for this slinky winding machine

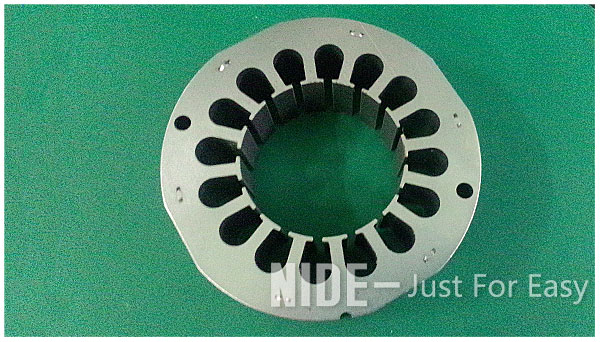

    motor stator lamination core production machine
